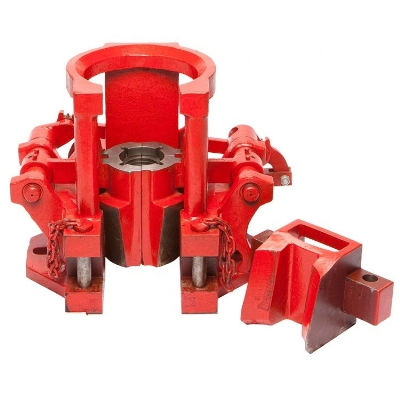

Se500 Casing Elevator/ Spiderj Design Oilfield Equipment Drilling Rig

   Product Description Slip Type Elevators/Spiders are mechanized tools with air operating. They can handle casings up to 24.1/2 inch. They are easy to operate and dependable enough. Also they can reduce workload. They are designed and manufactured according to API Spec 8C.  Product ParametersTechnical specifications of pneumatic casing elevator/spider: Model Number SE500 Machine Type Drilling Tool Certification API Material Carbon Steel Processing Type Forging Use Well Drilling  ModelApplicable diameter of tubulars(in)Rated capacityWork pressureMax pressure(tons)(MPa)(Mpa)SE1502 3/8-5 1/21500.6-0.81SE350(14)4-143500.6-0.81SE500(20)16-203500.6-0.81SE500(14)4-145000.6-0.81SE500(24 1/2)16-24 1/25000.6-0.81SEB3504 1/2-13 3/83500.6-0.81The 350 and 500 and 750Ton Casing Elevator/Spider Units are pneumatically operated power tools, capable of handing casing sizes from 4.1/2 to 24.1/2 inches, with string loads of 3150KN for the 350 ton unit, 4500KN for the 500 ton unit, 6672KN for the 750 ton unit.These units have been refined and incorporate such engineering features as air powered operation with safety latch, and four independent slips, as standard equipment.The main bodies can be dressed as a casing elevator or spider. The elevator consists of an upper unit using a bell guide and bottom guide. The lower unit is dressed as a Spider with a top guide that centers the Spider over the master bushing.The elevator is attached to the traveling block and hook with 350 or 500 ton standard API links. The Spider locates directly on the pin drive master bushing (27.1/2 MSPC, 37.1/2 and 49.1/2 MPCH), and square drive master bushing (27.1/2 MSS), and will accommodate any other master bushing when used with an Adapter Plate.Company ProfileHebei Xinhuafa Petroleum Machinery Co, Ltd. is a specialized manufacturer thatfocus on the manufacturing of oil drilling equipment and spare parts since 2006. Our main products are mud pump and accessories which can be interchangeable with many mud pump of oversea and domestic brand,including BOMCO F series, HHF series, NOV P series,LANSHI 3NB series, Oingzhou 3NB series and other mud pump. The products we supply are the cylinder liner, piston,valve(full open type and web type), piston rod, extension rod, cross head, bearing,v belt ,safety valve,manifold,sealing and other mud pump accessories. The products all meet the requirements of IS09001, and API-7K (American Petroleum Association) standards.Since 2023,we expand our workshop which cover 20000 sqm,which can improve our production capacity and products stocks.During the almost 20 years development,we have many advantages as below:1.The company is located in Hengshui City which 2 hours by high speed train from Being.Very convenient if customers come to visit .2.The factory is equipped with advanced machine, many technician with rich experience,strict quality control procedure make sure to supply best quality product.3. Production capacity is 3000 units /month,and inventory enough can timely meet customer needs.4. Perfect after-sales service and immediate response service at 24/7.Principle: focus on service, and strive to achieve win-win for customers, employees and company.Orientation: A professional One-stop supplier of oil and gas drilling equipment.  Mission: To provide high quality products and services for the oil and energy industry.  Values: Take responsibility and work hard,with seizing the dayVision: To serve more than 80% of oil and gas drilling engineering customers within 5 years.CertificationsPackaging & ShippingFAQ1,Q. How long for your delivery time?A. It will take about 15-35days to finish an order, but the exact time is according to actual situation.2,Q. Can you offer OEM or design services? A. Yes, we have our own design department. We can make OEM products according your requirements. 3,Q.How long is the warranty? A. 1 year/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
