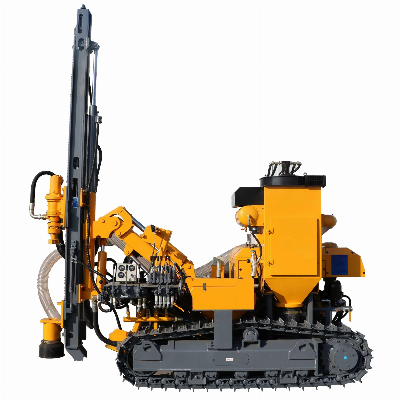

Zdkh612 Crawler Hydraulic Rock Drill Coal Drill Mine Blasting DTH Drilling Rig

Product DescriptionZDKH612 Surface Down The Hole Drill RigClose to the real needs of customers is the basic principle of ZDKH612. Lower use and maintenance costs, simple and efficient operation, low power consumption, high reliability,these characteristics that customers can really feel are the secret of the ZDKH612.-----Compact dimensions-----Extending undercarriage-----Safety frame-----Simple control-----Easy maintenance-----Versatility  ItemZDKH612DescriptionSurface Down The Hole Drill RigDiesel engineYu chaiLifting force25 knRated Power78 KWMethod of FeedOil cylinder +roller chainDrilling hardnessf=6~20Travelling speed0~2.5 km/hDrilling diameter90-120 mmClimbing capacity25°Depth of economical drilling30 mGround clearance254 mmSuitable Drilling rodφ60mm*2m / φ76mm*2mWeight of complete machine4540 kgSuitable DTH hammer 3" /4"Outer dimensions(L*W*H)4500*2150*2500mmWorking Pressure0.8~1.6 MpaVolume of diesel oil tank100 LAir consumption10~15 m³/minMethod of dust collecting 8 Core Dry type***We accept customer customization, please consult the seller.  Detailed PhotosCompany ProfileFAQQ1: Are you factory or trade company?A1: We are factory. And we have ourselves trading company.Q2: What the exactly address of your factory?A2: Our company is located in Kaixuan Road ,Economic Zone Quzhou, Zhejiang, ChinaQ3: Warranty terms of your machine?A3: One year warranty for the machine and technical support according to your needs.Q4: Will you provide some spare parts of the machines?A4: Yes, of course.Q5: What about the voltage of products? Can they be customized?A5: Yes, of course. The voltage can be customized according to your equirement.Q6: Which payment term can you accept?A6: 30% T/T in advanced, 70% T/T against the B/L copy./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
