Water Well Drilling Rigs Manufacturers, China 200m Drilling Rig

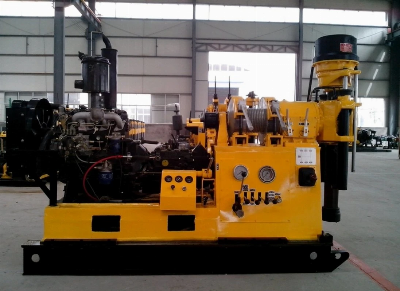

Application/Features 1. XY-3 Shallow Well Drilling Rig adopts CG140 model auto transmission, has 10 rotation speeds and easonable speed range, with eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.   2. Large engine power and two reverse rotation gears, can easily solve the water well drilling work accident.   3. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.    4. Equipped with normally closed hydraulic chuck, operation is flexible and reliable    5. Spindle and hoist can be operated separately.   6.  Spindle has big inner diameter, able to use big hexagonal drilling rod.   Specification   Unity machine parameterWater well Drilling depth600mMax open hole caliber300mmEnd hole caliber75mmDrilling Rod diameter60mmDrilling angle90°~65°Dimension2500 x 900 x 1800mmDrill weight (without power)1600kgSpindle Spindle speedForward 30-1050r/minReverse 29 137r/minSpindle stroke600mmSpindle inner diameter96mmLifting capacity6000kgHoist Max.Single line lifting capacity4000kgMax.Single line lifting speed0.5-1.9m/s Wirerope caliber12.5mmWirerope length50mReel diameter300mmHug folldgate belt width90mmMud pumpTypeBW-250Displacement250 L/minWork pressure80kg/cm²Water inlet pipe diameter75 mmWater outlet pipe diameter50 mmGear Oil pumpDuplex gear oil pumpCBF-F63/25Front Displacement, pressure63 L/min  20MpaBehind Displacement, pressure25 L/min  20MpaPowerDiesel engine4105 76HPElectric motorY180L-4 59KWPacking & Shipping 1. Inudustrial professional export packing, full inspection on all packing details. 2. Standard wooden case for Shallow Well Drilling Rig exporting and shock absorbing for better outerior protection. 3. Considerate interior plastic sheeting protection to prevent from wet and moisture. Our Company Chongqing Gold Mechanical & Electrical Equipment Co., Ltd. is the professional manufacturer in Geophysical instruments. Over 15 years experience engineers, and well-trained technicians, workers work together to back up our production line. We supply professional Drilling rigs with high quality and competitive price, such as: Core/Rock Drilling, Sample Drilling, Water Well Drilling, Down the hole Drilling, Truck, Crawler, Trailer, Tricycle mounted Drilling. We won high reputation from our customers mainly from Southeast Asia, Africa, Middle East, also including customers from Canada and some western countries like Germany, France. We do not just do trade business, but doing the business for providing better Customer Experience!  Sincerely welcome your inquiries!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
