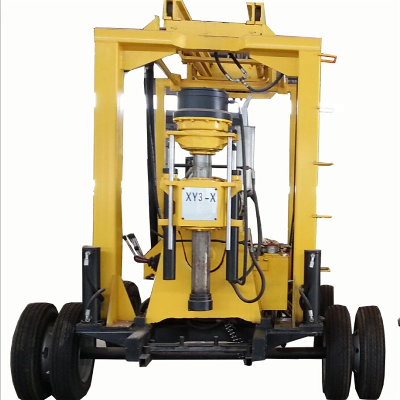

Engineering and Water Well Drilling Rig/Engineering Geological Exploration Drilling Rig

Engineering and water well drilling rig/engineering geological exploration drilling rig Product Introduction                                                          a. XY-3 drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and easonable speed range, with eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application. b. Large engine power and two reverse rotation gears, can easily solve the drilling work accident. c. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.  d. Equipped with normally closed hydraulic chuck, operation is flexible and reliable  e. Spindle and hoist can be operated separately. f.  Spindle has big inner diameter, able to use big hexagonal drilling rod.   Technology Parameters                                                    Unity machine parameterDrilling depth600mMax open hole caliber300mmEnd hole caliber75mmDrilling Rod diameter60mmDrilling angle90°~65°Dimension2500 x 900 x 1800mmDrill weight (without power)1600kgSpindle spindle speedForward 30-1050r/minReverse 29 137r/minSpindle stroke600mmSpindle inner diameter96mmLifting capacity6000kgHoist Max.Single line lifting capacity4000kgMax.Single line lifting speed0.5-1.9m/s Wirerope caliber12.5mmWirerope length50mReel diameter300mmHug folldgate belt width90mmMud pumpTypeBW-250Displacement250 L/minWork pressure80kg/cm²Water inlet pipe diameter75 mmWater outlet pipe diameter50 mmGear Oil pumpDuplex gear oil pumpCBF-F63/25Front Displacement, pressure63 L/min  20MpaBehind Displacement, pressure25 L/min  20MpaPowerDiesel engine4105 76HPElectric motorY180L-4 59K    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
