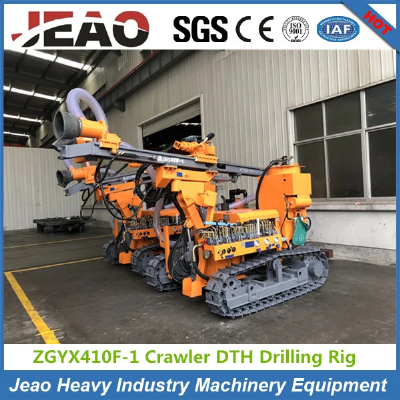

Popular in Quarry Crawler Open Air DTH Drilling Rig for Mining

ZGYX-412-1 Crawler Blast Hole Drilling Rig for MiningApplication :Crawler Down the Hole drilling rig ,for open pit mining , quarries and construction work sites, equipp with dry dust collector,more environment friendly and energy savingMain Features1)ZGYX-412 drill rig upgrades the operation platform, tramming components, hydraulic system, feed beam &rotary head from the original 410F to optimize the functional capability of the drill rig.2) Piston tramming motor great increases the work life of tramming mechanism.3) Upgraded operation platform can be controlled by one operator instead of two, to increase the work efficiency while lowering drilling cost.Specification of ZGYX-412 / 412-1 Crawler Blast Hole Drilling Rig :  Rock rigidityF=6-20Diameter of hole Φ90-110mmOptium drilling depth20mWalk speed2.5km/hGradeability30°Rotary speed70-150 rpm/minRotation torque                1650N.mLift power15 KNFeed wayoil cylinder-chainFeed distance                 2000mmCarriage Compensation900mmWorking pressure5-15barAir consumption7-12m3/minPower37.5/59kwDimension4900x2000x2200mmWeight3550/3800kg Model NoDiesel ModelDiesel PowerZGYX-412Xichai 4DW91-50GBG3U37.5KwZGYX-412-1Yuchai YC4DK8059Kw Dust collection systemas standard equipmentThe Macthing Diesel Screw Air Compressor:  Model NoF.A.D(m3/min)Pressure(Bar)PowerWeight110SCY-1012.510110Kw2450110SCY-14.51014.5110Kw2450kg  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
