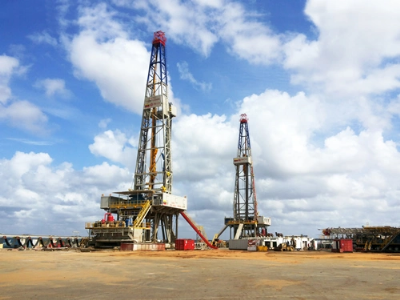

ZJ40/1000HP Conventional Land Drilling Rig Product introduction The land drilling rig is used for oil and gas exploration and development on wells that are 1600~3000m (drill pipe 4 1/2") or 1500~2500m (drill pipe 5") deep. Max. drilling depth 3,000 m.1. The rig with modular design and compact structure. The rig driller control cabin with electric & air & hydraulic oil control, which can reduce labor intensity and improve the working environment.2. The rig driving model could be VFD, mechanical or combined drive, client could require the rig model.3. Drilling rigs can choose DC drive, AC drive, mechanical drive drive and hybrid drive solutions, which can be configured according to customer needs.4. The rig sub structure model could be box-on-box or swing-up, with compact structure.Perfect HSE design to minimize the environment pollution and human harm. Technical parameter ModelZJ30/1700LZJ30/1700LDBZJ30/1700DZZJ30/1700DB4-1/2" DP ft m5" DP ft m5250~9850/1600~30004920~8200/1500~25005250~9850/1600~30004920~8200/1500~25005250~9850/1600~30004920~8200/1500~25005250~9850/1600~30004920~8200/1500~2500Max. Static Hook Load KIPS kN382/1700382/1700382/1700382/1700Max. DP Load KIPS kN225/1000225/1000225/1000225/1000Max. DW Input Power HP kW750/550750/550750/550750/550Drawworks Shifts4 forward+2 reverse4 forward+2 reverse4 forward+2 reverseSteplessMain Brake ModelDisc brake / Band brakeDisc brake / Band brakeDisc brake / Band brakeDisc brakeAuxiliary Brake ModelEddy current brake / E.T.N brakeEddy current brake / E.T.N brakeEddy current brake / E.T.N brakeDynamic brakingWireline Diameter in mm1-1/8"/291-1/8"/291-1/8"/291-1/8"/29Crown Sheave # & Travelling Sheave #5×65×65×65×6Hoisting System Stringing MethodSequent pulling/crossing pullingSequent pulling/crossing pullingSequent pulling/crossing pullingSequent pulling/crossing pullingTravelling Sheave Diameter in mm40/100540/100540/100540/1005Opening Diameter of Rotary Tab in mm20-1/2"/520.720-1/2"/520.720-1/2"/520.720-1/2"/520.7RT Drive TypeCompound driveIndependent driveIndependent driveIndependent driveClear Height of Mast ft m134/41134/41134/41134/41Substructure Height ft m16.4/5,19.7/624.6/7.516.4/5,19.7/624.6/7.516.4/5,19.7/624.6/7.516.4/5,19.7/624.6/7.5Clear Height of Substructure ft m12.4/3.76,15.6/4.7620.5/6.2612.4/3.76,15.6/4.7620.5/6.2612.4/3.76,15.6/4.7620.5/6.2612.4/3.76,15.6/4.7620.5/6.26Power of Single Mud Pump HP kW1000/7351000/7351000/7351000/735MP Qty2222Electric DriveIntegrated drive chain caseIntegrated drive chain caseAC-SCR-DCAC-VFD-ACElectric Drive HP kW1100/8101100/8101632/12001632/1200Diesel Engine Qty.2333Total Volume of Mud Tank BBL m³629/1001710/2601710/2601710/260/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
