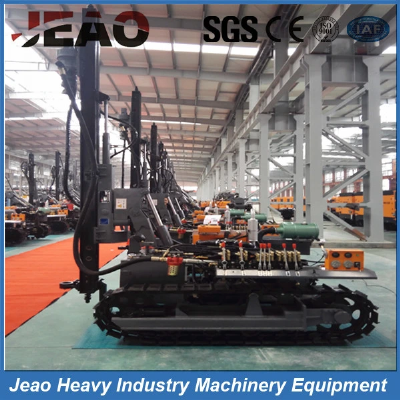

2020 Hot- Update Hc725 Air Pressure Hydraulic-Pneumatic Crawler Drilling Rig

2020 Hot- Update HC725 Air Pressure Hydraulic-Pneumatic Crawler Drilling Rig The Usage of Portable Crawler Hydraulic Drilling Rig:    1.This series machine are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.  2.This series drilling rigs with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes . Advantage of HC725 drilling rig :1. Low speed high torque hydraulic motor drive rotary device output torque required drilling operations. 2. The cylinder advance, so promoting a more stable, the failure rate is also significantly lower than the motor propulsion. 3. two filter effectively ensure the safety of diesel engine intake and prolong engine life. 4. can readily monitor rig hydraulic system pressure and boost pressure to ensure the rig stable and efficient operation.   Specification for HC725B1 Air Pressure Hydraulic-Pneumatic Crawler Drilling Rig:ModelHC725B1Rock hardnessf=6-20Diam. of the hole(mm)80-105Depth of the hole(m)25-30Drill bit(mm)dia.90Air consumption(m3/min)7~12Working pressure(Mpa)        0.6-1.6                                      Main motor power(kw)37kw(weichai brand- professional custom for HC725)Traveling speed(km/h)2.5Max.climbing ability(.)25Rotation torque(N.m)              900N.mRotation speed(rpm)0-90Drill rod length(mm)2000Weight(kg)3200Dimension(mm)4250*1980*2260Matched Portable Screw Diesel Air CompressorModel NoHG400-13CompressorStyleDouble screw, single stage compression, PortableAir Delivery(m³/min)10Rated Working pressure (Bar)13Range of Working pressure(Bar)5-13Lube Capacity(L)60Interface Dimension,QuantityR1.1/2" x 1,R1"x1Tire Specifications6.5-16x2Tire Pressure(Kpa)50-600Elevation Work Max.(m)3000L×W×H(mm)3220×1850×1850Weight2450Noise dB(A)80-85Diesel EngineModel 6BT5.9 Style Cooled stroke 4 direct injection super chargeRated Power(Kw/Hp) 110/150Rated Speed(rpm) 2500 or 2400Coolant Volume(L) 25-28Engine Oil Capacity(L) 12-18Fuel Tank Capacity(L) 120-16080% Load oil wear (L/h) 17-18/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
