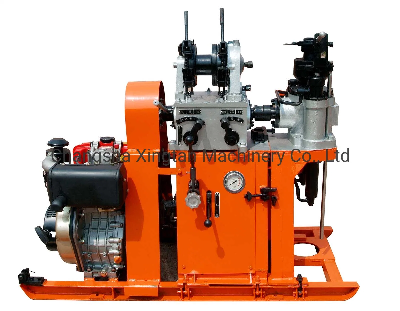

Light Portable Wty-30 Soil Testing Drilling Rig Equipment

  Product Description WTY-30  Portable Drill Rig is a kind of small portable drilling machine and It is applicable to the drilling operations of prospecting & exploration, geophysical exploration, road & building construction exploration and blast hole boring. The drill rig is of the following features: Reasonable technical parameters, higher mechanization degree and lower labor strength; It adopts the hydraulic feeding mechanism, with a convenient operation and higher drilling efficiency;Rotary table can be removed away from the wellhead with the front frame, realizing a wide operation area. It can be applied to various drilling ways;It is characterized by compact structure, smaller volume and light weight. It has stronger disassemblability, which is convenient for removal, assembly or repair;A transfer mechanism is equipped in transmission case, which helps perform quick hole-cleaning.  WTY-30A drill rig has the following new features:  Transmission case is equipped with an externally mounted dry clutch, characterized by compact structure, convenient operation and maintenance.Rotary table is equipped with a lower-mounted spiral bevel gear pair, which features in stable running, sufficient lubrication and longer using life; it is directly connected with transmission case and the auxiliary gearbox has been dismantled (not installed), realizing the compacter structure; a Φ40 oil cylinder is adopted, with lighter weight; the chuck is equipped with a ball clamp and a handle-positioning device is added, making operation more reliable and easier; the weight of rotary table assy. has been decreased by almost a half. A high speed gear (578r/min) is added, which is applicable to the core drilling with Φ76 diamond bit when dealing with the hard rock.The cantilever supporting in planetary gear device of hoist has been changed into a double-supporting structure, increasing the hoisting capacity and service life.The spec. of section steel of drill rack has been improved, which increases the overall rigidity and strength of the frame.Product Parameters S.N.ItemsParameters1Basic ParametersDrilling depth30 mBore diameter110 mmDrill pipe diameter33.5 mmDrill rig mass (including power system)290 kgDimension (L×W×H)1510×600×1055 mm2Rotary table Rotation speed 136, 338, 578 r/minMax. torque350 N*mFeeding travel 400 mmHydraulic feeding force8000 NHydraulic lifting up force  10000 N3HoistLifting capacity4000NWire speed of drum (2nd layer)0.46, 1.15, 1.97 m/sDiameter of drum:Φ90mmDiameter of wire ropeΦ8mmCapacity/length of wire rope18m4TowerTypeSingle seamless steel tubeHeight5.6m5Power machineMotor model185NRated Power (12h)5.88kWMax. Power (1h)6.62 kWRotation Speed2200r/minNet weight48kgDetailed PhotosFAQQ:Are you manufacturer?Yes, we are factory with more than 20 years of manufacturing experience.Q:What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. Before shipping, we will send all detail pictures  and  packing  list.Q:What is the warranty of our machine?A:Our main machine  for 1 year warranty, And we provide videos for machine install and operation, Provide spare parts service on time.Q: How long is your delivery time?A: Generally it is 5-10 days if in stock. or it is 15-20 days if the goods are not in stock according to quantity.Q:How do you make our business long-term and good relationship?A:We keep good quality and competitive price to ensure our customers benefits  Construct site pictures        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
