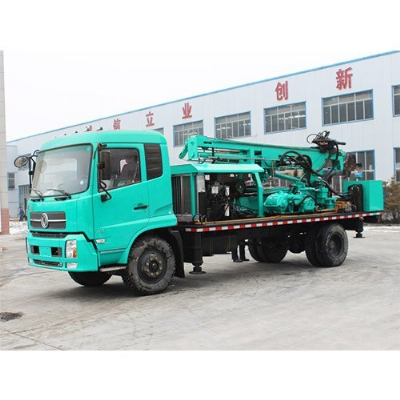

Truck Mounted Borehole Drilling Rig Truck Mounted for Tough Environments

Product DescriptionFeature1. Sinotruck, 6X6 drive.2. Drill diameter 500mm (20inches) and drill depth 420m.3. BW900 mud pump, fast to clean holes.4. One month overseas service by experienced engineer FOR FREE.5. One year quality warranty.6. Widely used in tough environments: deserts in Africa, remote areas in China, plateau in South America, etc.Product ParametersDrilling capacityMoving forceBF6L913G55 or 6135ANHole depth420mDiameter max500mmDrill rod89mm x 10mm x 6000mm / 73mm x 9mm x 6000mmMax. turntable diameter505mmActive Kelly108mm x 108mm x 7315mmDrill towerEffective height11mHook rated load25tHoisting system3 x 4Dimensions for transport12600mm x 2500mm x 4230mmWeight24tPowermodelBF6L913G55nameintercooled turbocharged diesel enineCylinder diameter102 x 125mmPower118kw / 2500r/minMax. torque555N.m / 1600r/minTransmission boxOutput speed1107r/minChain boxInput speed1107 r/minOutput speed964r/minGearboxInput speed1107r/minDouble hydraulic cylinder-cable driving mechanismPressure capacity196000NReduce pressure capacity135000NDecompression strock7.6mUnloading pipe cylinderStrock185mmCylinder inside diameter110mmRated torque60000N.mMud pmp BW900Max. pressure2.5MpaMax. displacement900L/minHydraulic pumpTypeGPC4-50Displacement(cm3/r) 52.5 Working SiteCompany ProfileFAQ1.Are you trading company or manufacturer?We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.2.Are your products qualified?Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.3.How about your machine quality? All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.4. Do you have after service?Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.5.What about the qaulity warranty? We offer one-year quality warranty for machines' main body.6.How long can you deliver the machine? Generally, we can deliver the machine in 7 days./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
