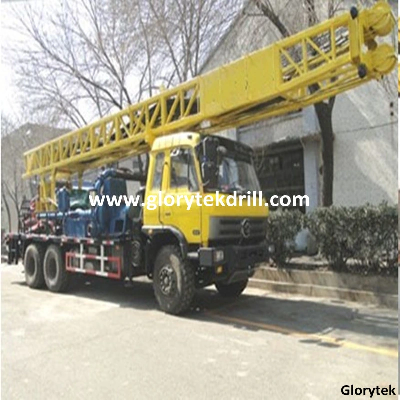

Obverse-Reverse Circulation Construction and Water Well Drilling Rig (CF150CA)

150m Obverse-Reverse Circulation Construction and Water Well Drilling Rig (CF150CA)1. It is a kind of truck mounted and rotary drilling rig. It mainly drills in quaternary loose strata, gravel strata, bedrock for various building foundation pile bore and also can used for industry & agriculture water well.2. This rig is equipped with obverse and reverse circulation pumping set. The brake valve of sewage is pneumatic control. It adopts the slurry as the washing fluid. To realize the obverse and reverse circulation drilling through the mud pump and sewage pump switch.3. The rig is equipped with hydraulic system, hydraulic tower, hydraulic support legs. The back support legs can stretch and withdraw horizontally and operate together or separately which can improve the balance of the rig.4. The power of drilling rig comes from the truck engine; The rig installs distribute impleThe main drive is mechanical; Drilling rod is threaded connection; Hydraulic discharge rod, high efficiency. Ment and hydraulic system.5. The rig can use steel wire pressure device which can help to drill in the hard land.6. The rig is installed a generator (15kw), which is convenient to illuminate or work at night.7. The appearance of rig is pretty, it is high efficiency because of having a larger torque of the turntable, it is mainly used for water well, building, bridge foundation, oil field casing pipe, hight tension line pile, wind-electricity pile, geological mine, port, dam foundation etc. It is popular at home and abroadSpecificationDrilling depth(M)150Drilling diameter(mm)500Speed of turntable(r/min)163; 141; 82; 53; 30; 17; 19(reverse)Torque of turntable(KN. m)6.5----59.8Single rope lifting capacity of main windlass(kN)40Single rope lifting capacity of assistant windlass(kN)40The hook lifting capacity of main windlass(KN)20The hook lifting capacity of assistant windlass(KN)16Bearing capacity of drilling tower (KN)200The height of drilling tower (mm)9543Drill pipeKelly bar(mm)182× 182× 4500Assistant pipe (mm)Ø 168× 3000(threaded connection)Mud pumpFlow (m3/h)180Suction process (m)7.5Delivery lift (m)26Rotate speed (r/min)1450Power (kw)306BS Sewage pumpFlow (m3/h)280Suction process (m)7.5Delivery lift (m)18Rotate speed (r/min)730Power (kw)30Truck chassisBrandCHANG' AN TruckDrive form6× 4EngineModelYC6A260-33YCRated power(KW)191Speed (r/min)2300Electric generatorModelMFRated power (kw)15Rated voltage(v)400Rated current(A)27Frequency(Hz)50The highest speed(Km/h)75Weight (kg)18830Transport size(L*W*H)(mm)10249*2480*3834Working size(L*W*H)(mm)10249*2480*10789  Related Product Our Company & Service Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.Factory Picture Customer photos FAQQ: How can we choose a suitable water well drill rig?A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site. Q: Are you a factory or a trading company ?A: We are an integrated corporation specialized in manufacturing and exporting. Q: What is your payment terms?A: We can accept T/T,L/C. Q:.What is your MOQ? How long is the delivery time?A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days. Q:. How long is the warranty?A: The guarantee period for mainframe is one year (excluding the quick wear parts). Q: Can we print my Logo on the products?A: Yes, we can. We support OEM . Contact Sunny Dong(Sales Representative) Glorytek Industry (Beijing) Co., Ltd.Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.       Website:  www.glorytekdrills.com/ glorytek.en.made-in-china.com    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
