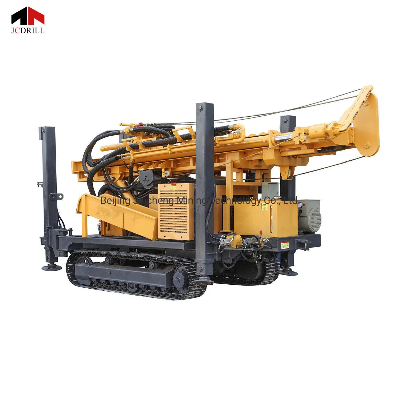

New Model Crawler Mounted DTH Water Well Drilling Rig

CWD600 Crawler Mounted Water Well Drilling Rig1Geology drilled  All kinds2Drilling Type DTH & Mud Rotary3Drill system and operation  Hydraulic4Hole DiametermmΦ140-Φ4505Hole Depthm6006Rotation TorqueNm6500    1st Gear11000   2nd Ger7Rotation Speedrpm0-80    1st Gear0-160   2nd Ger8Drill pipe diametermm89/102/1149Drill pipe lengthmm4000/450010Axial pressureT10Winch11 Max. Lifting forceT2812Lifting force of Main winchT413Lifting force of hoistT1.514Length of steel wire rope(tool winch)m10015Lifting height of tool winchm8Engine16Diesel Engine typeCUMMINS17Rated Horse power Kw13218 Electrical System24VoltCompressor required19 Compressor TypeRotary Screw/Movable20Pressure RequiredMpa1.05-6.921Air consumptionm³/min16-96Mud Pump(Optional)30Type Hydrulic31Model BW45032Strokemm11033DisplacementL/Min45034Discharge pressure (Mpa)Mpa2-335Suction tube diametermm8936Discharge pipe diametermm5137Liner Diametermm80Hydraulic Welder(Optional)38Mnufacturer Dynaset39Welding currentA60-25040Hydraulic Min.oilflowL/min4241Nom/Max PressureBar190/21042VoltageV110/220VDC43PowerKw1or244L*W*Hmm390*190*23045Foam pump OptionalGenerator(Optional)46GeneratorKW24Dimension36Net WeightT1537 Shipping Lengthmm850038Shipping Width mm230039Shipping Heightmm330040Ground Clearancemm300PicturesOthersService 1. We have service team to supply professional guidance for installation.2. Our quality inspection department will check each of machine before leaving the factory.3. We offer one-year quality warranty for main body of machine.4. All of machines we sold hold the ISO, QC, TUV certificates and so onCertificateFAQ                                                                                                                                                                         Q1. Is it a reliable company?Beijing Jincheng Mining Technology Co.,Ltd  is a professional manufacturer of drilling rig&drilling tools in Beijing,China, and specializes in the R&D, production, process and sale of water well drilling rig,rock blasting drilling rig,anchor drilling rig,RC drilling rig,air compressor and relative drilling tools. We have satisfied a lot of domestic and overseas clients' needs.  Q2: What about the delivery?The drilling rig,air compressor usually shipment by sea or road,and drilling tools can be delivery by air.Q3: What's the delivery time? 7-25 days after received your payment.Q4: What's the package? Strong and beautiful aluminum alloy case/carton case/wooden case.Q5: Do you have any timely technology supports?Yes. We have a professional technology supporting team and the technical documents for your timely services, also you can contact us by telephone, webcam, online chat (googletalk, MSN, skype, yahoo…). If you have problems, please email us. You will get our solutions in 24 hours.Q6: What's the payment method?T/T, WESTERN UNION, MONEYGRAMQ7: If the machines broken during the shipment, will you support us?Generally our customers will purchase the insurance before shipment to avoid any lost from rough transportation. We will help you to solve the claims with the insurance companies to collect your money back in time./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
