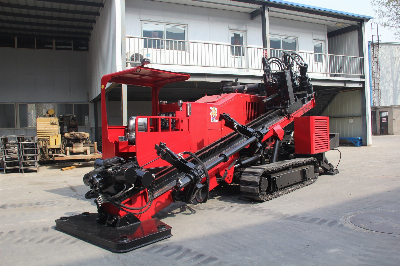

Trenchless Horizontal Directional Drilling Rig Ddw-4016, 40t HDD

DDW-4016 drilling rig is of the integral steel tracked chassis model with the characteristics of hydraulic operation, flexible movement and quick preparation of drilling. The drilling rig adopts double hydraulic motors-chain structure with the same feeding and back-dragging forces, suitable for urban and suburban long-distance work. Technical Specification   DimensionsLength/Width/HeightEntry angle Machine weight Track width7000*2300*2600 mm14-21º12 ton350 mm EngineMakeGross power ratingRated speed Fuel tank capacityCummins 160 KW2200 rpm230 LDrilling unitTravel systemSpeedRear stabilizerHydraulic hose carrierLighting systemself-propelled on steel track with rubber shoes0-3 km/h, forward & reverse2chain typecabin, rotary headHydraulic systemMax pressure (rotary & carriage)Max pressure (control sys.)Hydraulic tank capacity30 Mpa23 Mpa500 LOperator stationCabin Control systemOperation controlsCanopy or full closed, climate control with A/CPilot controlHydraulic levers Rotary drive Maximum rotary torqueMaximum rotary speedDrive shaft floating16000 Nm158 r/min66 mmCarriageCarriage systemMaximum thrust/pullback forceMax travel speed Max travel distance rack and pinion drive400kN45 m/min4.17 mWrench assembly Wrench designClamp/grip rangeMax breakout torqueMax makeup forceopen-top style60 -130 mm33000 Nm300 KNPipe loaderAutomatic pipe loaderMagazine capacityuses 3 m drill stem. 40 pipes per boxHydraulic anchor systemStake down operationStake down anchorsHydraulic 2Mud pumpOnboard mud pumpMax flow Max fluid pressuretriplex piston pump450 L/min10 MpaMud minxing unitTank capacityMud pipe inlet3 m33" * 8 mDrill pipe Length ( each section) Outside tube diameterThread type3000 mm83mmD80Pilot drill bitBeacon housingsuitable for wireless/wireline transmitterToolsBack reamer Diameter 330, 430, 530, 630, 730, 820, 920 mm  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
