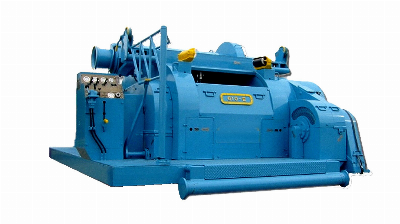

Oil Field Drawwork Well Drilling Rig

Product DescriptionDescription: A Draw works is the primary hoisting machinery that is a component of a rotary drilling rig. Its main function is to provide a means of raising and lowering the traveling blocks. The wire-rope drilling line winds on the draw works drum and extends to the crown block and traveling blocks, allowing the drill string to be moved up and down as the drum turns. The segment of drilling line from the draw-works to the crown block is called the "fast line". The drilling line then enters the sheaves of the crown block and it makes several passes between the crown block and traveling block pulleys for mechanical advantage. The line then exits the last sheave on the crown block and is fastened to a  leg on the other side of the rig floor. This section of drilling line is called the "dead line".Consist: Drum and shaft assembly, brake system, cathead assembly, transmission assembly, Control system, lubrication system etc.Product ParametersModelParametersJC40JC40DJC40DBJC50JC50DJC50DBJC70JC70DBRating Impute Powerhp (kW)1000(735)1500(1100)2000(1470)Max. Fast line Pull lbf.(kN)61820(275)76435(340)109030(485)Dia. of Drill Line in (mm)1 1/4(32)1 3/8(35)1 1/2(38)Drum Size (dia.×width)in (mm)25.20×44.84(640×1139)25.20×51.25(640×1302)26.97×44.80(685×1138)30.31×53.58(770×1361)Gears for Hoisting Speed4+2RStep-less speed changing6+2RStep-less speed changing6+2RStep-less speed changingBrake Disc (dia. x thickness) in(mm)59.06×2.99(1500×76)63×2.99(1600×76)Main Brakehydraulic disc brakehydraulic disc brake, energy- consumption brakehydraulic disc brakehydraulic disc brake, energy- consumption brakehydraulic disc brakehydraulic disc brake, energy- consumption brakeAuxiliary BrakeDWS40LWCBD236 FDWS50LDWCBD336 DS-70 Company Profile   Business type Custom manufacturer Country / Region Shandong, China Main ProductsLiner, Piston, Valve Assy, Swivel Joint, Hammer UnionTotal employees 11 - 50 People Total Annual Revenue 2730000 Year established 2011 Major Clients Confidential Certifications(3)ISO 45001, ISO9001, ISO14001Product Certifications - Patents - Trademarks - Main MarketsEastern Europe 24.00%Mid East 23.00%North America 15.00%FAQWhy you need to choose Lake Petro?As a professional oil and gas service company, Lake Petro has many good experience in selling and serves for the oilfield industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.Can you make us the best quality products as well as a good price.Yes. we can give you really high quality products with competitive price. We have a better understanding in Chinese market, withus your money will be safe.What is special compare with other companies?First, we provide the quality products, with BV and API certified; At the same time, we provide our customer with the best serviceafter sale, any time any where./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
