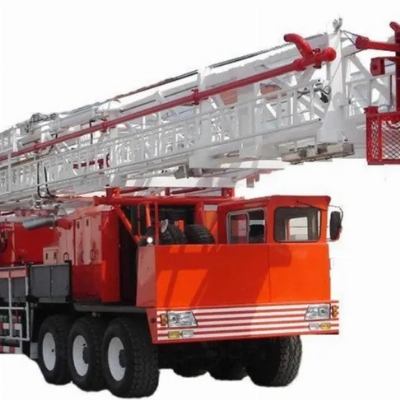

Product DescriptionThe technical advantage of this workover is that the supercapacitor module can be used as the supplementary power supply, and high load operation even in the insufficient capacity of power grid. The basic principle is: the super capacitance absorbs the power of the power grid under the workover, and releases the supercapacitor to supply the frequency conversion motor to make up for the lack of power grid capacity. Without the power supply condition of the oil field, the motor improvement of the workmachine. Power system: dual power input, the diesel engine adopts diesel engine to match the series hydraulic gearbox produced by Guizhou Kaisheng; the electric power adopts 110kW frequency conversion motor after deceleration and twisting through the third gear transmission, input into the transfer box, the transfer box and corner transmission box connection, power input into the winch; Electric control and energy storage system: it mainly consists of power control cabinet, power transformer, remote operating table, energy storage capacitance interval, etc. The control of electric power system is concentrated on the remote operating table to facilitate the centralized control of drilling drill. Special chassis: the chassis adopts 6000 + 1350 wheelbase special chassis, and the reasonable layout of diesel engine and hydraulic transmission, frequency conversion motor, etc. Technical parameterDrilling&Workover RigXJ450 (100t) Drilling&Workover Rig has a workover depth up to 5,800m and a service depth up to 7,000m. Equipped with rotary table, swivel and drilling tools, they can perform as a mobile drilling rig up to 2,000m depth. The main rig can be customized with well control, solid control and other systematic setup to become your complete solution to workover and drilling operations.Features:1. The mast is available in 31m, 29m or 25m.2. The chassis has good cross-country performance. The single drum work-over rig is with 8×8 full-driven chassis. The double drumwork-over rig is with 10×8 chassis.3. Workover unit is with the characteristic of reasonable arrangement, compact structure, good transportation performance and easyfor field installation and maintenance, etc.4. The drawworks auxiliary brake is water brake. Pneumatic tong brake and pneumatic water cooling disc brake are optional.5. Substructure and simple working platform are optional. Description XJ450 Workover Rig Workover Depth 4,500m (14,760ft, 2-7/8" DP)3,500m (11,480ft, 3-1/2" DP ) Servicing Depth 5,500m (18,045ft, 2-7/8" EUE Tubing) Rated Hook Load 800kN (179,850lbf) Max. Hook Load 1,125kN (252,900lbf) Traveling System 4×5 (Φ26mm/1" Wireline) Hook Hoisting Speed 0.25-1.4m/s (0.82-4.6ft/s) Overall Dimensions (L×W×H) 18.5×3.1×4.2 m 60.7×10.2×13.8ft Weight 55,000kg (121,250lbs) Max. Travel Speed 45km/h (28mph) Carrier Self-propeller 10×8 Transmission Allison 4700 OFS Max. Static Hook Load 1,125kN (252,900lbf) Racking Board Capacity 5,500m (18,045ft, 2-7/8" EUE Tubing) Racking Board Height 20.9m (68.6ft) Drawwork Rated Power 235kW(320hp) Main Drum Φ406×947mm(Φ16"×37.3") Max. Faster Line Pull 180kN (40,500lbf) Sanding Drum Φ965×264mm (Φ38"×10.4") Air Assist Brake System KOBELT Disc 4-7-48″Caliper 5026-CM Drill Floor ( L×W×H) 6.74×5×5m (22.1×16.4×16.4ft) Swivel Model andMax. load SL1101,100kN (247,290 lbf) ZP175 Rotary Table Max. Load 1,350kN (303,500 lbf ); Max. Open Dia. 444.5mm(17.5") Detailed Photos Company Profile SHANDONG LIGHT FIR MACHINERY Co., Ltd(LFM) is located in Shengli Oilfield, Shandong Province, China.LFM is a physical enterprise integrating mechanical processing and manufacturing and sales of special petroleum equipment. We have two cooperative production bases, which can produce OCTG and various accessories and tools.The products we can provide include: Rig accessories and tools, OCTG, LinePipe, FRP Line Pipe, Artificial Lifting Equipment, Wellhead equipment, Valves, Pipe fittings, BOP, Downhole Tools etc. According to standards: API, ASTM, ASME, Ghost etc.Our leading products: Casing & Tubing(API 5CT series, Tenaris Series), Valves(Gate Valve, Ball Valve, Check Valve, Globe Valve, Choke Valve; API 6A series, API 6D series, API 600 Series, and General Use Valves); BOP and BOP Spare parts; Drilling Tools etc.LFM is also a professional supplier of WATER TREATMENT EQUIPMENT. We work together with the professional WATER TREATMENT EQUIPMENT manufacturer in China. The products we supply have been widely recognized by customers.Our aim is "Use our professional services to make your business easier". Therefore, we devote to providing customers with integrated solutions and strive to become your one-stop procurement platform in China.CertificationsRelatedProducts FAQQ1: What's your packing?A: Regular packing.Q2: What's your delivery?A: Normally, about 30-45 days.Q3: What are the shipping methods?A: Ocean shipment to the port near from you; Air shipment to the shipment near f
