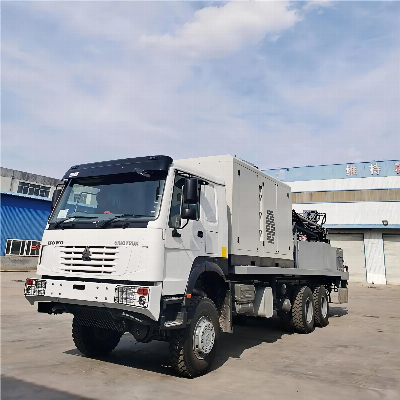

300m 6X6 HOWO Truck-Mounted Well Drilling Rig Machine, HOWO Drilling Rig

300m 6X6 Howo Truck-Mounted Well Drilling Rig Machine,Howo Drilling RigI. Product DescriptionHowo Drilling Rig rated special parts list:II. Product SpecsComprehensive overviewDepth:200-350MAperture:100MM-1800MMDimensions;13000×2500×4200MMTotal Weight:16500KGDrilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.A.CHASSISCodeNameModelParameterA01Truck chassisSpecial Purpose for Engineering  truckSINO TrukDriving form:6×6B.Drilling tower, Second floor chassisCode NameModelParameterB01Drilling towerTruss typeDrill tower load:30TOperation:Two hydraulic support cylindersDrill tower height:10MB02Pull up-Pull down cylinderCylinder-wire rope structurePull down:7TPull up: 20TB03Second floor chassisConnecting drill rig and truck chassisFour hydraulic leg cylindersEquipped with hydraulic lock to prevent leg retractionC.Drilling rig powerCode NameModelParameterC01Diesel engineWEICHAI DEUTZSix Cylinders, Water Cooling and Mechanical SuperchargingRevolutions:1800R/MINC02Diesel Engine MonitorMatchingMonitoring information such as speed, temperature and so on through diesel engine sensorsD.Mud pumpCode NameModelParameterD01Mud pumpBW600/30Type:Double Cylinder Reciprocating Double-acting Piston PumpMaximum pressure:3MPACylinder liner diameter:130MMMAXIMUM DISPLACEMENT:720L/MIN   D02Matching pipecomplete setInner diameter of drainage pipe:3'Inner diameter of suction pipe: 4'Internal Diameter of Backwater Pipe:2'E.Tool hoistCode NameModelParameterE01HoistZYJ2BSingle rope pull up:2TF. Rotation formIt has the advantages of hydraulic power head and rotary tableCode NameModelParameterF01Power headMechanicalGear position:5 positive turns,1 reversalsTorque:NMForeward:10000/4789/2799/1758/1234Reversal:7599Revolutions:RPMForeward:23/41/71/113/161Reversal:26G.Transmission caseCode NameModelParameterG01Transmission case Input torque:380NMH.Other Parts and ComponentsCode NameModelParameterH01AlternatorSTC-30KWRated Power:30KWRated Current:72.2ARated Speed:1500RPMI.operating systemCode NameModelParameterI01Control box Integrated consoleLifting and boring tower, outrigger cylinder, lifting, lowering, power head clutch, power head shifting, etc.Instrument: drilling tool weight gauge, system pressure gauge, etc.J.Can use drilling toolsCode NameModelParameterJ01Drill pipeVarious specificationsDiameter:Φ73mm/φ89mm/127mmLength:3M/4M/4.5M/6MJ02BitThree-wing scraper bitSteel tooth cone bitInsert cone drill bitCombined roller bitJ03ImpactorLow pressure, medium pressure, medium high pressure, high pressureJ04Hammer bitVarious sizesJ05Air compressorCOMPUSExhaust volume:29m³/MINExhaust pressure:2.4MPAFinland TAMROTOR original screw box According to customer requirements, we can choose various domestic and international air compressors.III. Truck DetailsIV. Work Sitesfor more information,please feel free to contact with us: Mr.Keane Hubei Dong Runze Special Vehicle Equipment Co., Ltd.      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
