Sjl-60 Crawler Walking Triple-Fluid Grouting Hydraulic Drilling Rig Machine

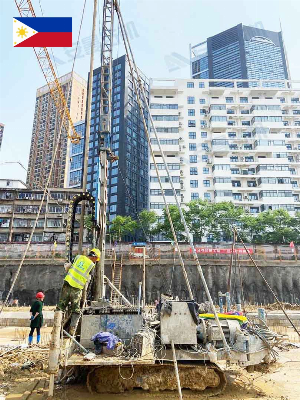

SJL-60 15.8-meter-height self-drilling jet grouting crawler drilling rig15.8-meter-height self-drilling jet grouting drilling rig-SJL-60 type high pressure jet grouting drilling rig is newly developed by our technical department, to meet the market.  SpecificationSpecificationSJL-60Hole depth (m)60~80Hole angle(°)90Rod diameter (mm)Φ73,Φ89Rated output torque (Nm)7000Rated speed (r/min)12,0-25,25,50,75,100Transport Dimension (L*W*H)(mm)5350*2100*2300Working Dimension (L*W*H)(mm)3600*2500*18350Weight (kg)6500  If you need more detail, pls kindly send email to usConstruction SiteProduct Show  Feature&Technology Construction Applications:1. High pressure jet grouting pile for soft soil foundation reinforcement construction2. High pressure jet grouting pile for waterproof curtain constructionConstruction Technology:Single-fluid grouting;Bio-fluid grouting;Triple-fluid grouting;Double-fluid high-pressure grouting.Main Feature and Function:  1. Retrofitting a 10-meter-height extension mast that is detachable.1)When conducting jet grouting pile within 13-meter-depth, rely on the extension mast, no need to connect and disconnect the drilling pipes over and over again, which reduces time, material and potential quality problems. If conducting more than 13-meter-depth pile, user can keep connecting drill pipes and continue the drilling-in and grouting job.2) The extension mast is with standard design, with 2 sections that can be freely combined according to your depth require.2. Hollow rotary head1) With 92mm diameter, which guarantees clear pass for dia89mm drilling rod.2) With hydraulic chuck structure, which makes changing drilling tools much more convenient and easier, no need to worry about connecting types of transition joint.3) With large torque rotary head, combined with our intensive drilling tools, it can drill through directly without making any guiding holes, which can save a lot of time. Production FlowAbout us    WUXI ANMAN CONSTRUCTION MACHINERY CO.,LTD. is a construciton machinery manufacturer which integrates of scientific researching, producing and sales, especially in the R&D and product customization for marketing demands. The drilling rigs are major in foundation construction, including high-speed railway,city subway, tunnel, basement under high-rise buildings, water-proof construction,etc. By different techniques, we have Multifunctional Anchor Drilling Rig (HDL Series), Anchor Drilling Rig(MXL, MX Series), Jet grouting Drilling Rig (SJ, SJL Series). All of them are the essential engineering machines in the construction projects. TrainingCertificatePackaging and TransportationFactory show    ExhibitionOur products have been exported to many oversea countries such as Malaysia, Vietnam, Singapore, Iran, England, Canada, Kampuchea, Indonesia and Africa.Meanwhile, welcome join us to be our agents and create the overseas markets.  FAQ:Q: Are you original manufacturer?A: Yes, ANMAN is manufacture in anchor and jet grouting machinery in China for more than 40 years. Q: Which payment terms are available to us?A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. Q: Which Incoterms 2010 terms can we work?A: ANMAN is a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP. Q: How long will the delivery time take?A: Normally it will take about 30-40 days to produce the ordered machines. Q: How about your sales performance in China?A: We have more than 2000 active customers in China. The leading market share of same function products in domestic fields./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
