Portable DTH Drilling Rig for Montain Area Driling Work

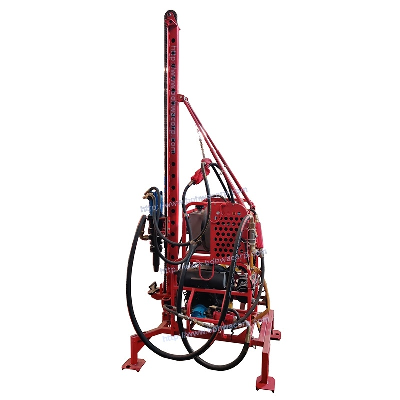

Portable DTH Drilling Rig for montain area driling workI.Features and Application    BH30D / BH30G Hole Blasting Drilling Rig is a type of portable drilling rig for blast hole drilling, it is mainly used for DTH drilling in hard rock in remote mountain area, where access is mainly by man power. The drilling rig is simple in structure and light in weight, easy for carrying, setting up, operation and maintenance.The hydraulic components are from world famous companies. To ensure stable performance of the drilling rig in DTH drilling, it has two-stage filtering to assure the reliability of hydraulic system. BH30D / BH30G drilling rig is a most ideal blast hole drilling rig for drilling in difficult mountain area. Normally, combined with air compressor, the drilling rig is capable to finish a hole of dia.75mm, depth 30m by air DTH drilling within just 5 ~ 6 working hours.BH30D: With Diesel EngineBH30G: With Gas-online EngineII. Technical Specification       Model No. BH30D / BH30GDrilling Depth (m) 30mDrilling Diameter (mm) 76/82mmDrilling Rod(mm) Φ50(60)x3.5x1500Power HeadOutput Torque (N.m)850N.mOutput Speed (r/min)0~120r/minPressurized Lifting SystemLifting Force (KG)1500KGMaximum pressure (Kn)4kNLifting Speed (m/s)0.59m/sHydraulic Variable SystemWorking Pressure (bar)205barEngine Output Power25hp / 3600r/min / Gasoline EngineAir CompressorAir Displacement Volume (m3/min)3.8m3/minAir Displacement Pressure (Mpa)0.8MpaWeight (KG)Power System of Drilling rig71KGOperation Platform70KGDerrick Assembly56KGPower Head32KGBase34KGPower System of Air Compressor86KGAir Compressor82KGDimensions (mm)Main Machine1250x1000x2800mmAir Compressor1750x800x920mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
