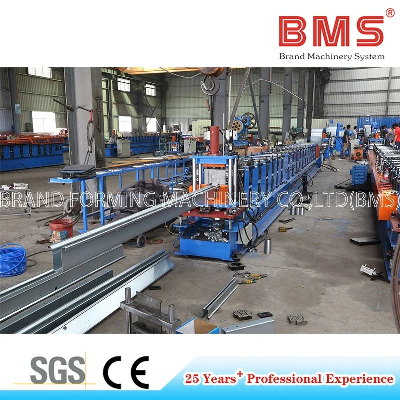

Factory Price High Quality Top Hat Purlin Roll Forming Machine

Factory Price High Quality Top Hat Purlin Roll Forming MachineProduct DescriptionTop Hat Purlin Roll Forming MachineMaterial               Effective Width Tolerance: ±0.5mm  Material Thickness:2.0-3.0mm               The Length Of Tolerance:±1(4m)             Applicable Material:Galvanized Sheet(GI)      Inspection Thickness:2.0mmCold Roll Steel(CRC)With yield strength 235Mpa-550Mpa Work FollowDecoiler→Leveling Device→Pre-Punching&Cutting Device→Roll Forming System→Hydraulic Post Cutter →Exit RackMachine Components               5Tons Hydraulic Decoiler: one set  Hydraulic control steel coil inner bore shrinkage and stopMax. feeding width:600mmCoil ID Range:508±30mm,Outside Diameter:1500mmMax capacity:5ton, motor:3KW, frequency speed controlPre-Punching & Cutting Device                      Roll Forming Machine  Body frame made from H450 type steel by weldingSide wall thickness: Q235 t22mm ;Rollers manufactured from Cr12 Steel,precision machined,hard Chrome Coated;Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating.Diameter=φ75/85mm,precision machined Gear & chain drive about 19-step to formMain Motor=15KW ,Frequency speed controlSpeed reducer motor:K seriesProduct speed:12-18m/min(Including punching and cutting time)                     Hydraulic Post CutterPost to cut, stop to cutting,Three pieces type of cutting blade design, no blankingHydraulic motor: 7.5KW ;Cutting tool material: Cr12MoV  PLC Control SystemControl The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.Combined WithPLC, Inverter, Touch Screen, Encoder, etcPLCSiemens (German brand)/Schneider(French brand)InverterSiemens (German brand)/Schneider(French brand)7-Inch Color Touch ScreenSiemens (German brand)/Schneider(French brand)EncoderOmron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC ContactorThermal RelaySiemens(German brand)/Schneider(French brand)Air SwitchLG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24VAfter-Sale Service1. The warranty is 24 months after the client receives the machine.Within The 24months, we will courier the replacement parts to the client free of charge2.We offer technical support for the entire life of our machines3. We can send our technicians to install and train the workers in the clients' factories with extra costTerms Of TradeMinimum order quantity (MOQ)1 SetDelivery timeabout 45 workdaysPort of loadingport of XiamenType of paymentby T/T or by L/CExportto more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia,USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand,Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etcPacking StylePacking methodMain body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.  View more products,click here...Company Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
