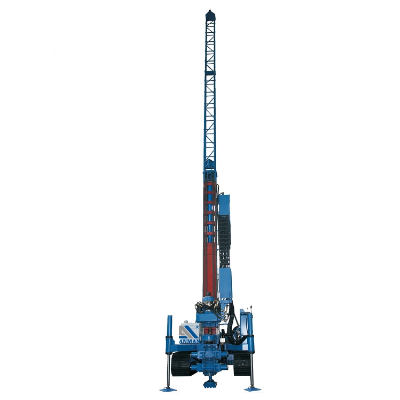

MXL-150D6 Hydraulic Jet Grouting Drilling RigProduct Description MXL- 150D6 Multifunctional drilling rig is produced by Wuxi Anman construction Machinery Co., Ltd.This new type is designed by not only based on MXL series drilling rig but also according to construction step jet grouting- anchor-anti floating anchor. SpecificationModel numberMXL-150D6Hole diameter(mm)Φ73,Φ89Hole depth(m)130~170Hole angle(°)0~90Output speed of rotary head(max)(r/min)130Output torque of rotary head(max)(N.m)7000Stroke of rotary head(mm)3400Lifting force of rotary head(kN)70Lifting speed of rotary head(m/min)0~5/7/23/30Feeding force of rotary head(kN)36Feeding speed of rotary head(m/min)0~10/14/46/59Input power(Electromotor)(kW)55+22Dimension(L*W*H)(mm)5400*2100*2000Weight(kg)6500Jet-groutingSingle,Double,TripleStake diameter(mm)400~600,600~1200,800~1600Length of joint pipe(m)13Elevating power of winch(KN)15Application DetailsSuccessful projectsRecommended Company Profile FAQ/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
