H Frame Double Crank Power Press Punching Press Stamping Press Power Press

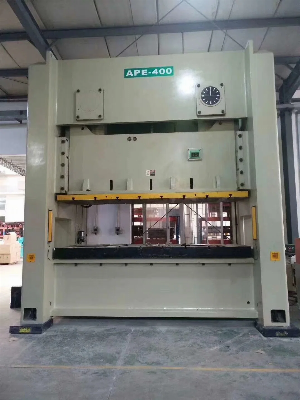

OurAPE series is H frame press, straight side double crank power press,high precision stamping machine. APE series is designed for the application of high precision, heavy metal stampings works, such as motorcycle and bicycle parts, and home appliance components. Automation provisions, APE can be easily upgraded for progressive robotic or mechanical transfer system.  Wide bed for large tools.Straight slide steel frame with superior rigidity in one piece or with separated members like the crown, bed, uprights connected by four tie rods pre-stressed hydraulically with nuts.Low-inertia, fast-response, and air-cooled separate clutch & brake.High-performance hydraulic overload protection.Double-geared and twin-end driven gear arrangements.Provision for the automatic feed system and the quick die change system.Type:  Closed door double crank steel frame press Punch press Mechancical press           Good quality cheap price, Chinese famous brand , good brand           Straight slide double crank press Metal sheet power press Punching machine        Double crank press H frame crankshaft metal punching machine Crank pressDescription:Double crank press machine Straight slide power press Stamping pressThe high-rigidity frame design, welded with high-quality steel and processed by the process of eliminatinginternal stress. Improve the precision stability and reliability of the machine. The center of the drive is alignedwith the center of the machine to ensure accurate and stable punching.       • To ensure the relative stability of the machine operation, the symmetrical two slide rails and the balancer device design are applied. • The die precision may be up to 0.1 mm and is safe, convenient and reliable. • The crankshaft, the gear set, the connecting rod, etc. are processed by oxidation and grinding, and have extremely high comprehensiveness and wear resistance performance; • Highly sensitive and reliable clutch/brake device and internationally leading double solenoid valve and overload protection device are applied to ensure the accuracy and safety of the operation and stop of the press slide; • The machine structure is designed reasonably, which is convenient for automatic production, reducing costs and improving efficiency; • Advanced design concept, low noise, low consumption and energy saving.Technical Parameters     Model APE-400Model V    HTonnageTon400Rated tonnage pointmm7        3Stroke lengthmm300      170Number of strokess.p.m20-30   20-40Maximum die heightmm550     450Slider adjustment volumemm120Lower table sizemm3200 x 1000 Upper table sizemm2800x1000Main motorkW30Supply air pressurekg/cm25Precision JIS(CNS) 1 class Die cushion type Two plate & two cylindersAir pressurekg/cm28   Warranty Policy:Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year.  (Except for improper operation or artificial damage by the buyers.)         /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
