Progressive Die for Plain Washer 5 Cavities Per Stroke DC51 Materials

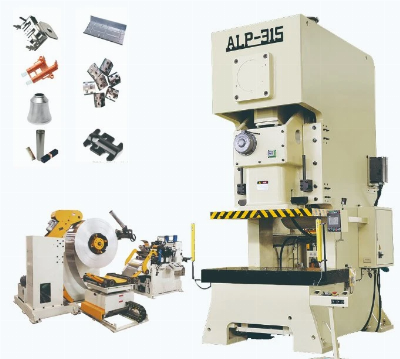

POWER PRESS MACHINEWe are manufacturer provide whole line solution including power press, feeder and decoiler, mould, Iron-hand,etc.High quality press machine, feeder machine, progressive die, mold, robot, ools -factory direct saleWe manufacturer which can provide the whole line solution including power press, feeder and decoiler, mould, Iron-hand,etc.ALP SERIES    We desgin and manufacturing molds with function excellent connect with:- Decoiler&straightner + NC servo feeder-Transfer system-Robot-Tools/Molds/Progressive die- Production line complete solution-Filed service /On line service    Mold Design& ManufacturingThe power press stamping molds/tools are including:1. progressive die,2. Stage mold (single stage mold),3. Transfer mold (with transfer system)What is the difference between progessive die, stage mold and transfer mold?Continuous die (also known as progressive die, step die) refers to the press in a stroke, in turn in several different positions, at the same time to complete a number of procedures of the die. Blanking parts are gradually formed in the continuous die, continuous forming is a process method of process concentration, can make the edge cutting, incision, groove cutting, punching, plastic deformation, blanking and other processes in a mold to complete. According to the actual needs of stamping parts, according to a certain order arranged a number of stamping processes (called in the progressive die station) for continuous stamping. It can not only complete the blanking process, but also complete the forming process, and even the assembly process, many complex stamping parts that need multi-process stamping can be completely formed on a die, which provides favorable conditions for high-speed automatic stamping. It can be seen that the continuous die is a kind of punching die with many working stations and high efficiency. Engineering mould (single working procedure mold/ single stage mold), is a single working position, single working procedure mould.It is characterized by a simple mold structure, the need for artificial or robotic arm assistance;So the relative production efficiency is low, mainly used for batch is not large, precision requirements are not high workpiece production.Due to the low cost of the engineering mould and the low requirement on the tonnage of the punch press, the engineering mould scheme is often preferred when making the mould scheme. However, with the continuous cost rising, the engineering mould will be gradually replaced by the continuous mould or transfer mould. Multi-station transfer mold, generally refers to the use of special multi-station punch, by a number of engineering mold with a certain process connection according to the process sequence installation, a kind of mold delivered by the manipulator. The most important characteristics of the multi-station transfer die (1) in the use of multi-station punch;(2) Each station is a complete engineering model to complete a specific process. Each engineering mold (single station-mold) has a certain connection, each station mold can be adjusted independently, and the adjustment is generally not restricted by the front and back mold;(3) transmission mode: mechanical hand delivery. Regular Mold Manufacturing parametersProduct NamePrecision metal progressive stamping dieprecision metal progressive stamping dieMaterialSKD11,D9, Tungsten steel, Cr12 MovStandardDIN GB ISO JIS BA ANSIDesign file formatdwg, dxf, step, x_t, top, igsTooling manufacturing cycle3 weeks to 10 weeksForming wayPunching, blanking, bending, burning, deep drawing, forming, etcStamping partsAluminum, phosphor bronze,stainless steel,steel,alloy,copper,plastic etcParts machining equipmentHot galvanized,Polish,Anodize,Sand blasting,Powder coating,Vacuum Plating,Nickel, Zinc, Chorme,Tin, Silver plating, gold-plated,imitation gold-plated,etcPunching Machine Paramaters:Model ALP-25ALP-35ALP-45ALP-60ALP-80Type VHVHVHVHVHCapacityTon2535456080Pated Tonnage Pointmm3.21.63.21.63.21.64242Speed Changings.p.m60-140130-20040-120110-18040-100100-15030-9080-12035-8080-120Stable Speeds.p.m11085756565Strokemm6030704080501206015070Die Heightmm200215220235250265310340340380Slide Adjustmentmm5055607580Slide Areamm300*220*50360*250*50400*300*60500*360*70560*420*70Bolster Areamm680*300*70800*400*70850*440*80900*500*801000*550*90Shank Hole-mm3838385050Main Motorkw.p2.2*42.2*437.*45.5*45.5*4Slide Adjust DeviceHPElectric DrivingAir Pressurekg/cm266666Presses Precision CNS(JIS)1ClassCNS(JIS)1ClassCNS(JIS)1ClassCNS(JIS)1ClassCNS(JIS)1ClassPresses Dimensionmm1280*850*22001380*900*24001600*950*25001600*1000*28001800*1180*2800Presses Weightton2.133.85.66.5 Die Cushion Capacityton-2.32.53.63.6Strokemm-50507070Die Cushion Effective Areamm2-300*230300*230350*300450*310 Model ALP-80ALP-110ALP-160ALP-200ALP-260Type VHVHVHVHVHCapacityTon80110160200260Pated Tonnage Pointmm4263636373.5Speed Changings.p.m35-8080-12030-6060-9020-5040-7020-5050-7020-4040-50Stable Speeds.p.m65503535
