Max Die Cutting Size 760X520mm Foil Stamping & Die-Cutting Machine

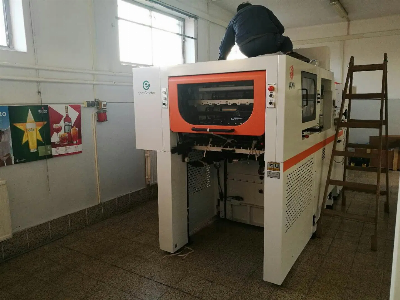

 Max Die Cutting Size 760x520mm Foil Stamping & Die-Cutting Machine Model: ECOO-TDS790   ∷∷∷∷  Brief  ∷∷∷∷TDS790 automatic die cutting & hot foil printing machine is consisted of feeding unit, main unit and delivery unit. Non-stop feeding and delivery, electrical control system are available with the machine. The inserter, pre-stack, stripping unit, BECKER pump and thermal embossing are all for you options. It is used for automatic stamping roll material, after printing, lamination. ∷∷∷∷  Application  ∷∷∷∷Suitable for the production of paper boxes, paper cups, wrapping labels, cardboard embossing, portable paper bags, paper covers, PVC, various plastics, etc.∷∷∷∷  Specification  ∷∷∷∷  ModelTDS790Max. Sheet size(mm)790x560Min. Sheet size(mm)310x210Max. Die cutting size(mm)760x520Max. Stamping size(mm)760x525Inside chase size(mm)780x530Height of cutting rules(mm)23.8Inter-platen distance(mm)51.5Max. Pressure (N)120x104Stock rangeMin. Sheet 90g/m2, Cardboard 157-2000g/m2, E, B fluteMin. Gripper margin(mm)6Max. Machine speed(s/h)5500Max. Stamping speed(s/h)5000The thickness of stamping plate(mm)5(Optional 4+1)Longitudinal feeding shafts3Transversal feeding shafts2Feeding pile height(mm)1200Delivery pile height(mm)950Electric heating system8 zonesMin. Foil width(mm)40Foil reel core(mm)25(1'') 76(3'')Rated power(kw)26Air supply0.8-1.0MPa, ≥ 0.6m³/minOverall dimension(mm)3855x3650x2210Weight of machine(kg)8500ModelTDS790Max. Sheet size(mm)790x560Min. Sheet size(mm)310x210Max. Die cutting size(mm)760x520Max. Stamping size(mm)760x525Inside chase size(mm)780x530Height of cutting rules(mm)23.8Inter-platen distance(mm)51.5Max. Pressure (N)120x104Stock rangeMin. Sheet 90g/m2, Cardboard 157-2000g/m2, E, B fluteMin. Gripper margin(mm)6Max. Machine speed(s/h)5500Max. Stamping speed(s/h)5000The thickness of stamping plate(mm)5(Optional 4+1)Longitudinal feeding shafts3Transversal feeding shafts2Feeding pile height(mm)1200Delivery pile height(mm)950Electric heating system8 zonesMin. Foil width(mm)40Foil reel core(mm)25(1'') 76(3'')Rated power(kw)26Air supply0.8-1.0MPa, ≥ 0.6m³/minOverall dimension(mm)3855x3650x2210Weight of machine(kg)8500∷∷∷∷  Units of the Equipments  ∷∷∷∷♥  Feeding/ Delivery unitAutomatic feeder rolls back quickly to give easy access for make ready and locks up in secondsOne feeding bar for suitable paper infeedOne delivery hand with 6 delivery fingers, adjustable according to paper sizeAutomatic elevated feeding pile   ♠  Main machineDelivers accurate, adjustable impression for foil stamping, embossing and die cuttingTwo horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economyAir blast system helps to separate foil from stock on critical jobsMicrometer adjustment on side guide and front guideAdjustable dwell on impressionHoneycomb base is convenient for loadingMissed sheet detector4 heating zones with digital control24 hours preheating deviceControl system with touch screen HMI, PLC and servo systemVideos on Youtube: https://youtu.be/7CTccHcRUIc ∷∷∷∷  Advantages  ∷∷∷∷ • Transmission of main unit adopt imported A/C frequency converter control, start up and stop of the machine are controlled by means of imported air clutch.• Running of the whole machine is controlled by PLC. Interface touch-screen for monitoring machine running condition, trouble indications and their corresponding shooting ways. This is more operator-friendly.• Independent temperature control to each heating zone makes operation temperature of the machine more equal and stable. Function of timing preheating can enhance working efficiency greatly.  ∷∷∷∷  Producing And Packaging  ∷∷∷∷From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers. ∷∷∷∷  Certificates  ∷∷∷∷  ∷∷∷∷  FAQ  ∷∷∷∷Q1: What are your main products ?A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.You can get the equipment and consumables all in one and no worry about the after-sales service from our company.Q2: Where is your factory ?A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!Q3: Is there any certification for your CTP Processor ?A: Yes, all our machines have been certified by SGS and CE.Q4: Can you also supply the Workflow and RIP ?A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.Q5: What about the installation and after-sales technician support ?A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from
