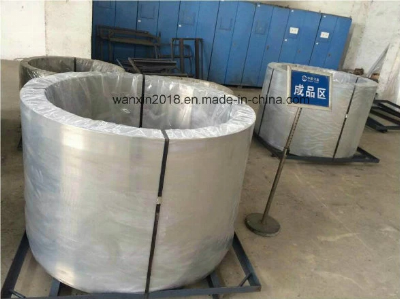

300MW Retaining Ring Forging for Generator

Nonmagnetic retaining ring is a critical component of heavy turbonator, one of the components bearing the highest stress, and by means of the retaining ring the centrifugal force is borne on the location of turning of the coil block on the both ends of the rotor.The retaining ring is hot assembled on the both ends of the rotors to compact the coils on the ends to prevent the coils of rotors during high speed operation from runaway damages which might cause disastrous accidents to the power stations.Specification:Material standard:GB, ASTM,DIN, ENMaterial:Non-magnetic Stainless Steel, Alloy SteelForging machine:Electric-arc Furnace,Sawing Machine,Electric Slag Furnace,8000T Press Machine, Forging DiesMain Process:Material(Electric Furnace Smelting + Elctrode Rod Discard+ ESR+ Forging)+rough machining + Solution heat treatment + Cold expanding + Stress relieving heat treatment+ Final machining +Inspection(mechanical properties testing+ NDT)Test equipment:Tensile testing machine, Impact testing  machine, Grinding Machine, Chemical testing Machine, Magnetic permeability testing machine, Grain size testing machine, UT machine, PT testing material.We can manufacture all kinds of the retaining ring for generator and can also manufacture according to the custmer's specific requirements.Our advanced technical process for forging and cold expanding guarantees the high product quality.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
