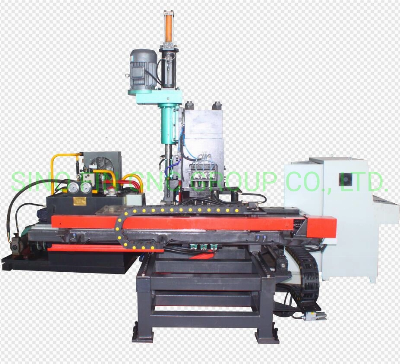

CNC Punching Marking Drilling Machine

CNC Steel Plate Punching Drilling Marking Machine is the most popular mahine in steel tower factories & steel structure factories! This machine has been exported to many countries like India,Bangladesh,KSA,UAE,Egypt,Morrocow,Kenya,South Africa,Vietnam,Indonesia,Malaysia,Chile,Agentina, Brazil,Mexico,Canada,Russia,Ukrain etc.Moreover We have the local service India,Vietnam,Indonesia,Russia,Kenya.NamePDM100      DescriptonsPDM110     DescriptonsCNC Steel Punching Drilling MachineMax. Punching Force:1000KNMax size of work piece: 1500x800mmMax punching diameter: 26mm(S235/275)Punching thickness: 5~25mmMax drilling diameter: 50mmMax drilling thickness: 40mmFeeding speed of drilling:25~280mm/minStroke of drilling spindle: 180mmSpeeds of drilling spindle: 180~560mm/minPunching force: 1000KN Marking force:800 KNDimensions of marking:14x10x19/18x14x19mm Die-stations:4 (1drilling,2 punching,1marking)Programming Mode:Input by keyboard,R232 or USB interfaceHydraulic System:water coolingCNC Two Axis Precision: +/-0.5mmTotal Power: 26kwOver Dimension:3200x3000x2600mmWeight: 7000kgs or so.Max. Punching Force:1100KNMax size of work piece: 1500x1000mmMax punching diameter: 32mm(S235/275)Punching thickness: 5~25mmMax drilling diameter: 50mmMax drilling thickness: 40mmFeeding speed of drilling:25~280mm/minStroke of drilling spindle: 180mmSpeeds of drilling spindle: 180~560mm/minPunching force: 1000KN Marking force:800 KNDimensions of marking:14x10x19/18x14x19mm Die-stations:4 (1drilling,2 punching,1marking)Programming Mode:Input by keyboard,R232 or USB interfaceHydraulic System:water coolingCNC Two Axis Precision: +/-0.5mmTotal Power: 26kwOver Dimension:3200x3000x2600mmWeight: 9000kgs or so.Main PartsPLC                                                          MITSUBISH (Japan)Servo motor                                             PANASONIC (Japan)Servo system                                           PANASONIC (Japan)Pneumatic cylinders for pad lump            Adriatic(Taiwan)Magnetic induction switch                        Adriatic(Taiwan)Approaching switch                                  Highly(Taiwan)Air valve for pad lump cylinders               Adriatic(Taiwan)Mufflers                                                    Adriatic(Taiwan)Pressure switch                                       ATOS (Italy)Electromagnetic valve                              ATOS (Italy)Electromagnetic overflow valve                ATOS (Italy)Overflow valve                                          ATOS (Italy)Ball screw                                                HIWIN (China)Bearing                                                    Haerbin(China)Oil pump                                                  WKS/DENISON(USA)Computer                                                 Lenovo (China)Inventor                                                    INVT(CHINA)Software                                                            SINOFIN (CHINA)After Sales ServiceSupplier will send the engineers. The boarding/Lodging/to anfrom & to China tickets,will be provided by the buyer. Training for the staff will be done by supplier.Remote installing and commissioning also ok! Moreover We have the local service India,Vietnam,Indonesia,Russia,Kenya.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
