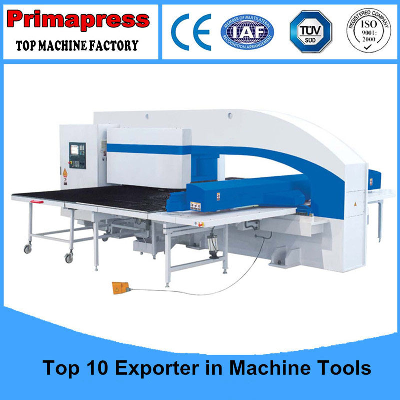

CNC Turret Sheet Punching Machine 30ton

T30 CNC Turret Punching Punch Machine T30 for making coating equipmnet CNC Electro Servo Drive Turret Punch Press/Punching Machine Price CNC Turret Sheet Punching Machine 30tonVideos in Youtube:https://youtu.be/LifK0BBAi0g Product introductionBrief IntroductionSpecifications1. Nominal force                           KN           3002. Workpiece size                          mm           1250×2500Max workpiece weight                   Kg           1564. Max workpiece thickness                  mm           6.355.Max punch diameter                      mm           88.96.Number of stations                                     32Working accuracy                      mm           ±0.1Max. hit speed                         HPM          600Workpiece traveling speed               m/min         106Turret speed                      r/min          30Frame construction                              Closed-typeThroat                           mm          1275Number of control axis                           4 axes (X, Y, T, C)Max rotary station punching diameter   mm         50.8Repeatability                    mm          0.02  Number of clamp                               2Clamp type                                    Pneumatic type   Heat treatment of the frame                       Tempering Tool type                                      Long guide sleeve type                                                     (AMADA)Turret construction                              Long bushing in the thin turret    Air pressure                         Mpa       0.6  Machine dimension (L*W*H)           mm       4800*2700*2200Machine weight                      kg        17500 2. Machine Feature1. Advanced and reliable Hydraulic drive system can select stroke automatically corresponding to different thickness of metal sheet and is convenient to realize special process of louver, blanking, etc. The punch is equipped with auto Hydraulic overload protection device, and guarantees consistent pressing force for quality products.   CNC Electro Servo Drive Turret Punch Press/Punching Machine Price2.  The punch is of FANUC 0iP control system.3.  Rotary tooling stations are of worm wheel structure with max. punching diameter of 50.8.  4.  Dual turret is of long insert structure ensuring coaxiality of the punch and die, which gives long life to the tool and turret.5.  Imported pneumatic and Hydraulic components guarantee reliability of the machine.Imported ballscrews with long travel, and linear guideways ensure transmission precision.The worktable with hard brush and steel ball reduces noise and shock of the machine, and protects surface of the work piece.                                         The machine is straight-side frame, which is annealed for eliminating inner stress.The clamps with auto protection function, in the protective zone, only excise movement without punching action for continuous operation.                        10.Central lubrication device provides lubricant oil to the desired points to reduce friction of pairing elements for long machine life.12.Tool station layout consists of A,B,C,D, which is convenient for the customer and save the tool cost.13.Common requirement is for site foundation preparation and machine installation is simple.  Special Thick Steel Plate Hydraulic CNC Punch Press Machine T30 CNC Turret Punching Punch Machine CNC Turret Sheet Punching Machine 30tonDetailed Photos: About Prima Factory: Nanjing Prima CNC Machinery Co., Ltd. is located in the center of China's machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone, Nanjing  Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales, our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Primapress Brand sheet metal processing equipment. Widely used in automobile manufacturing, communications, computers and so on. Prima CNC insist on leading technology strategy, positioning in the "do-class machine, a first-class brand," the high level of long-term sales of CNC machine tools in the process, not only to cultivate a number of series of numerical control products, while cultivating a group of skilled, practical style of high-quality workforce. Enterprises have their own research and development institutions, with the domestic strong product research and development of skills. Primapress specializes in the export business, our company already has CE certification and have one international after-sales team
