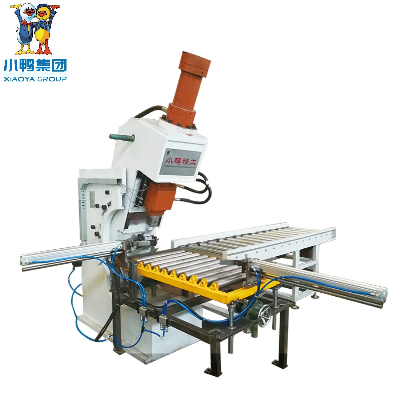

Valve Hole Press Punching Machine for CNC Parts CNC Machining Service

Valve Hole Punching press    No.DescriptionData of Valve Hole Punching Press1model numberYPCK-400YPCK-8002nominal press force of main slider400KN800KN3max travel of slider300mm400mm4nominal press force of punching hole250KN320KN5max travel of punching cylinder25mm25mm6max distance between slider and working table670mm670mm7slider size200*200mm300*200mm8throat depth180mm200mm9working table size380*180mm380*180mm10vertical height from working table to floor750mm750mm11production efficiency>6pcs/min>4pcs/min12motor power11.5KW18.5KW Main Features1. The punch press has an independent hydraulic transmission unit and electrical control cabinet.2. The hydraulic punch press uses a PLC control system, and has three operating modes: adjustable, manual, and semi-automatic.3. This machine features over-stroke and over-pressure protection, as well as emergency stop and filter block warning functions.4. The working pressure, speed, and stroke of this valve hole punch can be adjusted according to processing needs.5. This process can realize the automatic transmission operation of work pieces.6. cnc machine with cnc machining parts and cnc machining service.Contact us immediately for the most preferential priceBest wishes!/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
