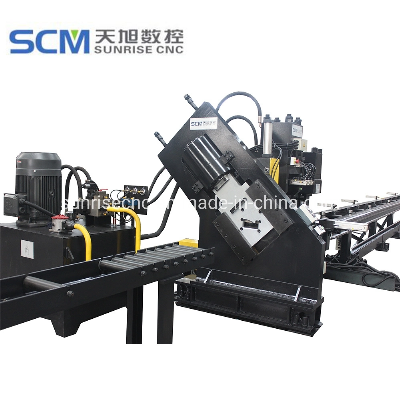

CNC Hydraulic Flat Bar and Chanel Punching, Marking and Cutting Machine

Applicable Industry: The machine is the automatic special equipment used for flat bar and channel steel marking, punching, and shearing mainly in the field of angle steel tower industry.Product Feature:Adopt CNC technology,servo motor infeeding,with high efficiency, stable workpiece precision.Key hydraulic,pneumatic and electric parts all imported.Easy programming and can directly use the program data made by lofting software.Computer with Chinese/English interface,easy operation, and can display the drawing of workpiece.All marking,punching and shearing in automatic completeness.Only need to input size of workpiece,diameter of holes and quantity of workpiece when edit program.Fast marking speed.Flat end with single-balde cutting; Circular arc end with double-blade cutting;With self-diagnosis failures function.Technical Parameters:ModelTPL9004Max.Workpiece length(mm)9000Workpiece width(mm)40~120Channel size(mm)#6.3,#8,#10,#12.6(By customer's request)Max.punching diameter(mm)Φ26Oval hole(mm)22X50Max.thickness(mm)12Punching force(KN)1000No. of punching die-station3Marking force(KN)800No. of marking die-station1Character size(mm)14×10×19No. of character box4No. of characters12Cutting force(KN)1200Cutting ModeSingle-blade cuttingFeeding modeNC carriageFeeding speed(m/min)60Programming modeAuto CAD or lofting softwareProgram functionError displayMain Components:  Main Electric Components1PLC Japan Mitsubishi2Servo MotorJapan YASKAWA3Servo Driver4Proximity SwitchAUTONICS5PowerChina Aerospace6Business ComputerChina LenovoHydraulic Components1Hydraulic solenoid valves(all)ATOS Italy ATOS2Vane pumpAmerica DenisonSpare parts list :NoNameQtyRemark1punch headRound holeΦ14,Φ181set Oval hole Φ14x30,Φ18x302Cavity die Round holeΦ14.7,Φ18.71set Oval hole Φ14.8*30.8,Φ18.8*30.83punch pole for round holes3(2)Including installed in machine4punch nut for round holes3(2)Including installed in machine5punch pole for heterotypic holes2(1)Including installed in machine6punch nut for heterotypic holes2(1)Including installed in machine7marking box2(1)Including installed in machine8character1setIncluding installed in machine9upper balde1set 10lower balde1set 11Upper claw2(1)Including installed in machine12Lower calw2(1)Including installed in machine13Proximity switch1 14Proximity switch1 15O ring1set 16Inner hexagon spanner1set 17Spanner for punch head1Manufacturer made18600mm adjustable spanner1 19Standby paint2 20Operation Manual2sets /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
