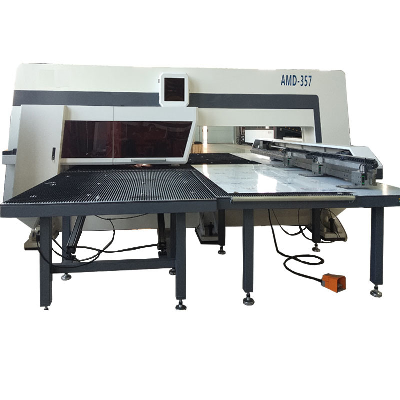

Sheet Metal Punch Press CNC Punching Machine for Electric Cabinet

CNC Turret Punching Machine Machine for electric cabinet  SpecificationunitAMD-357Transmission modeKN300Power ratingkw20Processing sheet sizemm2500*1250Processing sheet thicknessmm≤6Max.Punch Diametermm88.9Sheet moving speedM/min40/60Punching frequencyhpm800Hole accuracymm0.1Number of stations in turretNO.16/24/32Turret speedrpm30Controlled axisNo.3/4Rotating locationNo.0/2Air pressurempa≥0.8Outline dimensionmm4490*5300*2110Machine weightT13  StationSizeStation No162432A3mm~12.7mm81216B12.7mm~31.7mm4812C31.7mm~50.8mm222D50.8mm~88.9mm222Main configuration of Turret Punching Machine CNCControl system: SIEMENS Servo motor: YASKAWA (from Japan) Servo amplifier: YASKAWA (from Japan) Precision ball screw assemblies: TBI (from taiwan) Precision liner roller rail: ABBA (from taiwan) Electric parts: OMRON Advantages of hydraulic series cnc turret punching machine:1.Au-to index station function effectively solve the irregular angle's shear difficulties. 2.Adopts Siemens CNC special system and match up digital AC servo motor to make if fast and reliable. 3.O type steel plate welding press, the whole pass by tempering treatment to own good rigid and hardly deformation. 4.High decision digital hydraulic main transmission system, speed is faster, stroke is adjustable. 5.Equipped with the second positioning function, processing, the clamp automatically avoid, which can achieve without dead zone processing. 6.The transmission system use the international brand with high precision, long guide screw, linear guide rail are high precision and good performance. 7.Main pneumatic components, electric components, hydraulic components adopts international well-known brand products,which makes the punch press performance more perfectly. 8.Uses AMADA standards casting integrated type thick turret mold disc and standards thick turret international molds. Our service of CNC Turret Punching machine:1Reply your inquiry in 12 working hours.2Experienced staffs answer all your questions in time.3Customized design is available.4Exclusive and unique solution can be provided to our customer byour professional engineers and staff.5Special discount and protection of sales are provided to our distributor.6We are professional manufacturer of sCNC punching Machine.Have a professional design team with more than 10 years designexperience engineers, competitive with good quality.7As an honest seller, we always use superior raw material, advancedmachines, skilled technicians to ensure our products to be finishedin high quality and stable feature.8Prompt delivery, site installation and commissioning.FAQ: 1. Production time: 20-40 days according to different type. 2. Installation and commissioning time: 10-15 days. 3. Installation and commissioning issue: We will send 1-2 technicians to help with machine installation and commissioning, customer pays for their tickets, hotel and diet. 4. Warranty time: 12 months from date of commissioning completion, but no more than 18 months from date of delivery. 5. Payment term: 30% as prepayment, balance 70% before delivery or L/C at sight. 6. We supply full English documents: Including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc. Welcome to visit our factory in Qingdao!     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
