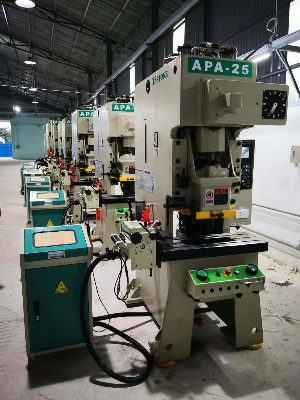

Power Press Punching Production Machine Press Stamping

Description: 80 tons, 110 tons, 200 tons power press Stamping press machine High precision press machine PressesPower Press Punching Production Machine Press Stamping   The high-rigidity frame design, welded with high-quality steel and processed by the process of eliminating internal stress. Improve the precision stability and reliability of the machine. The center of the drive is aligned with the center of the machine to ensure accurate and stable punching.  To ensure the relative stability of the machine operation, the symmetrical two slide rails and the balancer device design are applied.The die precision may be up to 0.1 mm and is safe, convenient and reliable.The crankshaft, the gear set, the connecting rod, etc. are processed by oxidation and grinding, and have extremely high comprehensiveness and wear resistance performance;Highly sensitive and reliable clutch/brake device and internationally leading double solenoid valve and overload protection device are applied to ensure the accuracy and safety of the operation and stop of the press slide;The machine structure is designed reasonably, which is convenient for automatic production, reducing costs and improving efficiency;Advanced design concept, low noise, low consumption and energy savingOil hydraulic overload protection deviceManual slider adjustment device (TP60 and below 60)Electric slider adjustment device (TP60 above)Mechanical die height indicator (TP60 and below 60)Electric die height indicatorStandard configurationSlider and die balancing deviceAir source connectorSecondary drop protection deviceAir blast deviceMaintenance tool and tool boxInstruction manualFrequency converterPower outletShockproof support7 inch touch screen, electronic camAngle displayTonnage measurement and protection deviceBottom dead center detectionPre-cut and pre-break functionName  APA-35Model VHTonnageTon35Rated tonnage pointmm3.2  1.6Number of strokes per minuteVariable speeds.p.m40-120110-180Constant speeds.p.m85Strokemm7040Maximum closed working heightmm220235Slider adjustment volumemm55Upper table sizemm360x250x50Lower table sizemm800x400x70Die handle holemm38.1Main motorkw3.7Slider adjustment mechanismHPElectrical driving Applied air pressurekg/cm2006Press precision GB(JIS)1dassPress (LxWxH)mm1380x900x2400Die cushion capacityTon2.3Die cushion stroke lengthmm50Die cushion effective areamm2300x230Warranty Policy:Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year.  (Except for improper operation or artificial damage by the buyers.)   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
