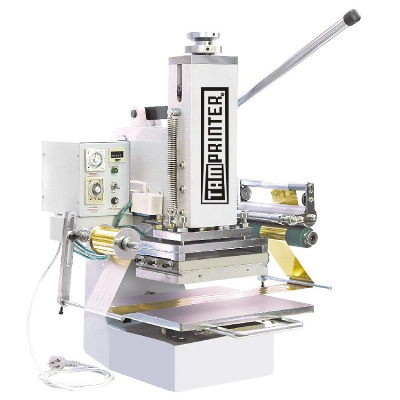

Customized Manual Hot Fiol Stamping Machine Made in China

TAM-358 agendas embossing briefcase Manual Hot Stamping Machine Technical Parameters:  1ModelTAM-358TAM-358-A4 embossing machine2Product shapePlanePlane3Impression area300X150mm (11.8" X 5.9")A4 4Power220V220V5Electrothermal Power1000W1000W6Operationsemiauto(60degree-400degree)semiauto(60degree-400degree)7Stamping speed700 PCS/H700 PCS/H8Print head300X150mm297X210mm(A4)9Worktable350X320mm350X320mm10Pressure2000 kg2000 kg11Max. product thickness190mm190mm12Machine Weight146KG150KG13Machine Outline Dimensions620X580X770mm/68*66*82620X580X770mm/68*66*8214Volume0.9CBM0.9CBM15Lead Time6 days after payment6 days after payment16SKU50 SET50 SET17Packingplywood caseplywood case18Gross Weight180KG190KG19Payment TermsTT/Western UnionTT/Western UnionCharacteristics: 1. Semi-auto stamping, auto foil feeding, without compressed air, leads to easy operation.  2. Stamping temperature adjustable. 3. The height of the stamping head adjustable accordingly. 4. Automatic foil feeding and rolling with adjustable function.    5. The mechanism to transmit printing ribbon uses motor reduction gear with its length being properly controlled. 6. Horizontal sliding print bed - for accurate product placement.  7. Variable motorised auto foil feed - for minimal waste and effort.  8. Flat heating element - for efficient heat transfer. Micro-adjustable pressure - for the ultimate in convenience and versatility.   The differences between TAM-310-1 and TAM- 358: 1, the structure of the different heat TAM-310-1 hot plate is installed heating pipes TAM-358 is an integrated whole plate heating apparatus have done on the inside 2, stamping head structure TAM-310-1 is a screw hanging TAM-358 is locked flange screws 3, the slider TAM-310-1 activity table, drawing no slide instability Steady TAM-358-type table 4, the pressure TAM-358 maximum pressure in the manual series, nearly two tons TAM-310-1
