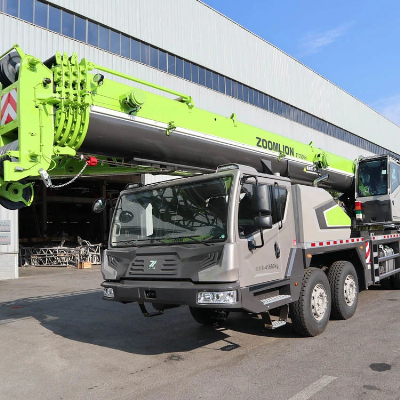

50ton Mobile Truck Crane Ztc500h552

Truck Crane (ZTC500H552) 1. Specialized boom of U-type cross section has features of light deadweight, better strength and strong lifting capacity. 2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading. 3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance. 4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.   CategoryItemUnitParameterOutline DimensionsOverall lengthmm13750Overall widthmm2800Overall heightmm3520Wheel base1st and 2nd Axlemm14702nd and 3rd Axlemm41053rd and 4th Axlemm1350TrackFront wheelmm2304Rear wheelmm2075WeightTotal vehicle mass in travel configurationkg41000Axle load1st and 2nd Axlekg150003rd and 4th Axlekg26000PowerEngine rated powerkw/(r/min)247/2200Engine rated torqueN.m/(r/min)1350/1400Engine rated speedr/min2200Travel PerformanceMax. travel speedkm/h75Min. travel speedkm/h3Min. turning diameterm24Min. turning diameter at boom tipm26.8Min. ground clearancemm261Approach angle°17.5Departure angle°11.6Braking distance (at 30 km/h )m≤10Max. grade ability%40  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
