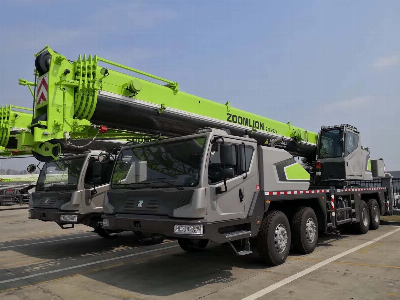

Zoomlion 55 Ton Overhead Hydraulic Truck Crane (QY55V)

Zoomlion 55 Ton Overhead Hydraulic Truck Crane (QY55V)Product DescriptionContinuously overall promotion makes our lifting capacity of crane be improved once and once again.45 m main boom, two section jibs (9.5m, 16m).Optimized central slewing position increases the lifting capacity of the crane over rear. Large outrigger span improves the working stability of the crane greatly.Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.Leading boom manufacturing process in trade.Product Parameters ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg55000 Max. load moment of basic boomkN.m1568 Max. load moment of main boom(fully extended)kN.m940.8 Max. lifting height of main boomm44These  parameters do not include deflection of main boom and jibMax. lifting height of jibm60Working speedsMax. hoist rope speed(Main winch)m/min135At 4th layerMax. hoist rope speed(Auxiliary winch)m/min120At 2nd layerBoom demrricking up times45 Boom telescoping out times95 Slewing speedr/min0-2.2 Driving parametersMax. height above sea levelm2000 Max. driving speedkm/h74 Max. gradeability%40 Min. turning diameterm≤24 Min. ground clearancemm260 Oil consumption per hundred kilometersL40   Detailed Photos Company Profile  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
