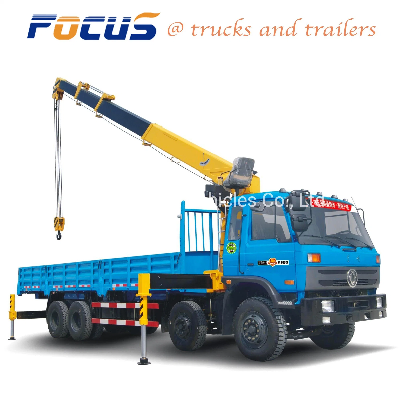

DONGFENG 16 ton 8X4 construction machinery mobile telescopic boom truck mounted craneSpecificationsClassifyItemsParametersChassis specs Model of chassisDFL1250A9ManufacturerDongFeng Motors Co.,Ltd.Total curb weight kg16085Load capacity kg8685Max speed km/h85Overall dimension mm11960×2500×3790Carriage dimension mm8300×2294×550Passengers3Wheelbase mm5700+1300Distance of front and rear wheels mm1940/1860/1860Drive mode/Number of shafts6X4/3Approaching angle/Departure angle °29/10Front suspension/Rear suspension mm1250/3500EngineModel of engineC300-33Power of engine Kw/Hp221/300Engine output volume ml8300Exhaust standardEURO 3Motor manufactureDongFeng Cummins Diesel Engine Co.,Ltd.Specs of loading craneITEMUNITSCrane model SQ12SK3QMax lifting capacityKG12000Max lifting capacityT.M30Recommend powerKW30Max oil flowL/MIN63Max pressureMPA26Oil Tank CapacityL160Crane weightKG4200Installation spaceMM1300Rotation angleDEGREE360 All RotationMax extension lengthMM12500Max lifting heightMM13500Max elevationDEGREE75Crane truck, is also called truck crane, self-crane, etc. according to custom in some places. It is a kind of equipment that realizes the lifting, turning, and hoisting of goods through a hydraulic lifting and telescopic system. It is usually assembled on a truck. It is generally composed of a truck chassis, cargo compartment, power take-off, and crane. It integrates hoisting and transportation, and is mostly used in stations, warehouses, docks, construction sites, field rescues and other places.[Product introduction] It is a kind of equipment that realizes the lifting, turning and hoisting of goods through hydraulic lifting and telescopic systems. It is usually assembled on a truck.[Crane Brands for choice]: Sany, Changxing, Chengli, Feitao, Shimei, etc.[Models for choice ]: 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18tons, 20 tons, 25tons, etc[Chassis for choice]: Dongfeng series, FOTOn series, JAC series, Isuzu series, FAW series, etc.[Applications]: It integrates hoisting and transportation, and is mostly used in stations, warehouses, docks, construction sites, field rescues and other places[The structure of the truck-mounted crane]: The truck-mounted crane is composed of a boom, a column, a frame, an outrigger, and hydraulic components. The boom is the main device for lifting goods when lifting. The column is an important part connecting the boom and the frame, and the column is mainly used when the goods rotate left and right. The frame is mainly the part that connects and fixes the uprights and legs. The main function of the outrigger is to maintain the balance of the hoist during hoisting operation. The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi-way reversing valve, hydraulic lock, balance valve, motor, rotating center joint and pipeline. In addition, there are hoisting mechanism, slewing mechanism and so on.[The working principle of the truck-mounted crane]: The truck-mounted crane implements various mechanical actions through the principle of hydraulic transmission. What we usually use is to use the power of the car to drive the hydraulic oil pump through the power take-off and connect the hydraulic valve to achieve work. If there is no car power, we use the oil pump motor unit to provide the power source. The oil pump motor unit drives the electric motor to work through the 380V voltage when there is no vehicle power in the field, docks, ships, workshops, etc. If it is a field operation, after the generator generates electricity, the oil pump is driven by the electric motor to work.HENAN FOCUS VEHICLES Co., Ltd. (Short for Focus Vehicles), is commited to R&D, manufacturing, sales and services of high-end special vehicles. It has been gained good reputation and awarded with honors and titles, such as"HENAN High-tech enterprise", "Trustworthy Brand", "Being committed to supplying high quality equipment and service for urban logistics and transportation", etc. Our mission is to creat more value for clients, employees, partners and shareholds, determined to become a real enterprise being respected in China special vehicles inducstry. Various of trailers we can provide and be manufactured as special design and with environment protection equipments, Flatbed Semi-trailer, Container Chassis, Low-bed Semi-trailer, Fuel tank Semi-trailer, Bulk Cement Tank Semi-trailer, Fence semi-trailer, Side wall Semi-trailer, Box semi-trailer, Dump Semi-trailer, LPG LNG semi-trailer, Full trailer, Dump truck, fuel tanker truck, water tanker truck, cargo truck, concrete mixturetruck etc with great price and service advantages. Clients visit1**You please send us your enquiry; 2**We shall reply you with the quotation within 12 hours; 3**We ne
