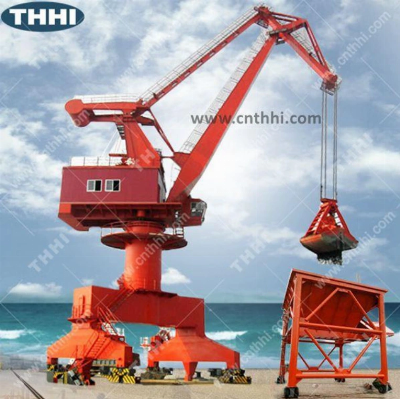

Thhi Railway Travelling Portal Four-Link Level-Luffing Crane

Thhi Railway Travelling Portal Four-Link Level-Luffing CraneIt can be equipped with container automatic spreaders,hooks or grabs for loading and unloading of containers,groceries or bulk cargo.The whole machine adopts AC frequency conversion speed regulation and PLC control,and is equipped with intelligent Chinese"Status Monitoring Control Screen".It realizes fault monitoring and provides troubleshooting assistance;realizes dynamic monitoring of operation status and provides dynamic change graphic display;it also has safety information alarm,lubrication maintence management help and a manned dialogue window. Lifting weight:5T~100T;Working range:6m~80m;Working level:A5~A8. Four-bar linkage floating craneBrief introduction of modelThis FQ1633/2525 type crane mounted on the barge, is a floating crane with fixed full rotation, four-bar linkage combination jib, leverage live balance, cylinder support, and it carries out handling operation of bulk cargo or packed cargo by using grab or hook. This machine uses AC frequency control, PLC control, and installed intelligent "state monitoring and control system." It has the characteristics of beautiful appearance, safe and reliable work, advanced performance, convenient maintenance, high durability and so on. It can be widely used in loading and unloading operation in various river and ocean floating port terminal.Main Technical ParametersHoisting capacity16t(grab)25t(hook)Working gradeA8Working rangeMax./Min.33m/9.5m25m/9.5mHoisting heightOn the deck/under the deck16m/11m25m/11mWorking speed of MechanismLifting mechanism55m/min30m/minLuffing mechanism50m/minRotary mechanism1.5r/minInstalled Capacity439KWMax. working wind speed20m/sNon-working max. wind speed55m/sMaximum turning radius of tail8.54mPower supplyAC380V 50HzCrane weight≈280tNote: The above parameters for the performance of the existing cases of mature technical parameters are for reference only. We can design and manufacture products according to user's requirements. There are various derivative models of said crane available for customers to choose.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
