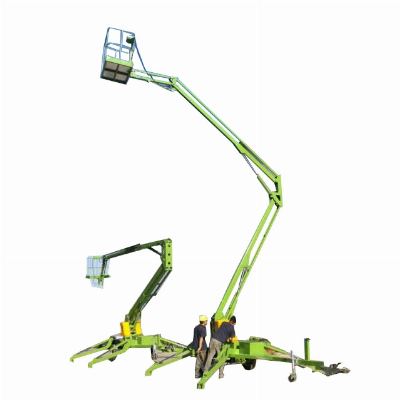

Factory Price 6m to 20m Towable Trailer Mounted Mini Boom Lift

made in china vehicle mounted articulating boom lift hydraulic trailer boom liftDiesel articulated boom lift1. Complete Safety Devices :Standard four-link weighing devices; measures such as overload protection, automated detection device for detecting platform amplitude and height, automatic control of the movement speed and traveling speed of the boom, and high-precision weighing devices, to ensure the safety and stability of operation in all directions.  2.  Control box:Full proportional control handle and CAN bus as well as PLC control system with high positioning accuracy are easy to be controlled and can be operated by the users at will.   3.Traveling System:The closed running system consisting of electro-proportional variable pump, hydraulic control variable motor and flow distribution valve can gain relatively high movement speed and relatively low and stable running speed. The system works efficiently and generates less heat.  4.  Hydraulic System: Closed running system, speed easily to be adjusted, wide speed range; the boom's hydraulic system adopts double valve core circuit, which enhances the safety. The hydraulic components adopt European and American pure brands. Battery articulated boom lift1. Smaller Structure Size: The power-driven vehicle has smaller width and height (off-running status), which is more suitable for indoor operation.  2. Environmentally Friendly :The electric articulating boom takes storage battery as the power source, and makes low noise and no emission, so it can be used indoor and other environments with special requirements.   3. Hybrid Power (Optional) :The options of generator sets are available, and the generators can be used to charge the storage battery. 4. Manually-operated Emergency Drop Device:The manually-operated pump in the system can be used to descend emergently.    5. Power and Gas Supply in Platform: As per the requirements of users, the platform can be equipped with AC380V power and compressed air pipe, to meet the users' special working requirem Specificatiom Parameters:ModelGTZZ-22Z Working Height Maximum24.19mPlatform Height Maximum22.19mWorking radius maximum16mLift capacity230kgCrossing height maximum6.8mLength( stowed)  8.78mWidth (stowed)  2.58mHeight(stowed) 2.8mWheel base 2.6mGround clearance  430mmPlatform measurement  *1.83*0.76mTailswing2.6mTurning radius Minimum 5.2mTravel speed(stowed)6.3km/h(2WD);4.2km/h(4WD)Travel speed(raised or extended)1.1km/h Gradeablity30%(2WD);45%(4WD)Solid tire 36*14-20 Swing speed0~1/3rpmTurntable swing 360° ContinuousPlatform levellingAutomatical levellingPlatform rotation±80°Hydraulic tank volume100LTotal weight12800kg(2WD);13000kg(4WD)Control voltage12vDrive & steering type4*2*2;4*4*2EngineCummins (B2.8-C58) Yanmar(4TNV94L-BXPHZ)Rated power45kw/2200rpm   JIANGSU GOLDSUN WINWIN GLOBAL TRADE CO,.LTD contact :cherry MOB:0086-15951403499          /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
