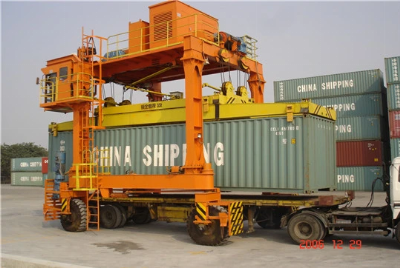

Container Transporter Gantry Crane

Container Transporter Gantry Crane   Working Class:A7,A8Ambient Temperature:-25~40ºCOverview Container transporter gantry crane is widely used in the container yard of the port.   It is mainly used for transporting container from one yard to another yard.   Container transporter gantry crane also mainly used in ship handing, large structure handing, loading and unloading. Adapt multiple lifting points combined spreader, it can satisfy all kinds of complicated operation condition required by customer. Container transporter gantry crane can rotated 360 degree around the crane center flexible, all the hydraulic transmission mechanism and the lifting mechanism can realize stepless transmission, it can satisfy all the operating requirements in different conditions, the travelling mechanism adopts hydraulic circuit, has the advantage of high efficiency transmission and low failure rate. There is perfect safety instructions and overload protection device to ensure the safety of the operator and equipment. All the action of mechanisms are adopted can-bus control. FeaturesHigh Quality Material and Components The steel plates are all from Bao steel, Wuhan steel, Handan steel, all steel should be inspected by our National Technology Test Laboratory to ensure the quality. The generator unit is International brand and the driving, rotating, hydraulic power unit are chinese or international famous brand.   Modular Design The components of crane are designed into various series standard modulars. And different modulars can be assemblies to different products. All the modular components can assemble and disassemble for good transportation. Standard modular components can be manufactured with short producing time and steady quality. So that we can short the delivery time.   Advanced Manufacturing TechnologyPretreat Both side of all the steel plate of crane are pretreatment by pretreatment production line, Sand blasting-- Primer spray--Primer drying. Eliminate the innerstress of steel plate, increase the adhesive force of the steel structure. Ensure the appearance and anticorrosion quality.   Cutting Steel plate cutting adopts whole sets Messer CNC plasma cutting machine from Germany, wiht very fast cutting speed, little deformation, High precision, Deviation could be controlled within 1mm, it insure the raw material at high quality standard and can reach top level in the industry.   Welding The welding of main beam adopts high efficiency and intelligent welding robot, Weihua are No.1 enterprise who adopts this high technology machine. The welding joint inside of the main beam adopts advanced MAG welding, adopts Ar+CO2 mixed protective gas, The 4 welding joint outside of the main beam adopts automatic submerged-arc fillet welding machine. The welding of main beam adopts radiographic inspection and ultrasonic flaw detection for the welding joint and fillet weld position. Specifications   Main parametersRate capacity100tSpan7m(Net span5.4m)Hoisting height5.75mHoisting speed0~1m/min Loading0~2m/min UnloadingGrade climbing ability2.5%Travelling speed0~25m/min Loading0~45m/min UnloadingArches loading42500kgGrounded press
