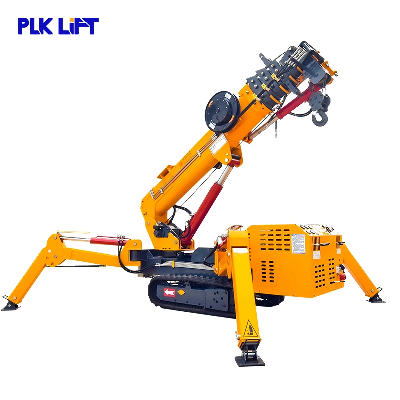

PLK LIFT Crawler Spider Crane combines the space-saving qualities of a spider crane withthe powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.Features & Advantages:1. The Crawler Spider Crane for moving loads quickly, easily, and safely.2. Spider crane, suitable for occasions with limited space.3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronousexpansion and contraction of the main arm.5. The telescoping limit of the boom uses the double insurance of the marking line and thealarmData SheetModel TypeCL1.2CL3.0CL5.0CL8.0CL10.0CL12.0CL14.0Lifting Capacity1.2 ton3.0 ton5.0 ton8.0 ton10.0 ton12.0 ton14.0 tonMax Lifting Height5.8m x 0.8t10m x 0.8t16m x 1.5t18m x 1.5t21m x 0.6t24.5m x 0.9t14.5m x 2tMax Working Radius5m x 0.3t9m x 0.2t15m x1t16.5m x 0.2t20m x 0.2t23x0.2t23x1.5tWinchHook rising speed0-8m/min0-10m/minWire Rope SpecificationsΦ8mm×35mΦ8mm×45mΦ10mm×120mΦ10mmΦ11mm×100mΦ12mm×80mΦ12mm×80mTelescopic DeviceBoom form45Boom length/time1.7m-5m/22sec2.8m-8.2m/22sec4m-15m4.5m-16m5m-21m5.5m-23m5.5m-23mHeave DeviceBoom Angle/Time0-75°/13sec0-75°/13sec0-75°/13sec0-75°/13sec0-75°/13sec0-75°/13sec0-75°/13secRotary DeviceRotation angle/speed0-360°(continuous)/60secOutriggerForm of outrigger actionManual unscrewing + hydraulic automatic support (two legs)Running gearWay of WalkingHydraulic motor drive, two speedWalking speed0-2.5km/h0-2.5km/h0-5.5km/hGradeability20°(36%)MotorVoltageAC 380VEnginePowerAC+GasolineAC+DieselType/displacement9.6 kwYN27GBZ/2.7LStart Methodelectric startBoot Performance-5°C~40°CFuel/VolumeGasoline/8LDiesel//45LBattery Capacity (optional)12v 45AH24v 45AHFuel Consumption274g/kW-h230g/kW-hNoise LevelRated speed≤81.5dBA (1m)Operating SystemType of Operation (boom/outrigger)ManualWalkingManual + remote control (option)Operating CharacteristicsKemai hydraulic systemStandard Configurationengine powerOverall Size2095*600*1393mm3100*800*1650mm4500*1360*2100mm4950*1560*2235mm6000*1560*2200mm6000*1850*2600mm6500*2000*2400mmCraftsmanshipPaint assembly processOur Service1.We can design the customerized electric crane as per your requirement.2.The most suitable model will be recommended to you once we know about your requirement.3.Shipment can be arranged from our port to your destination port.4.Opetion video can be sent to you if needed.5.Maintenance video will be given once the electric crane break down to help you repair.6.Parts of crane can be sent to you by express within 7 days if needed./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
