Integral Pup Joint Flowline Products

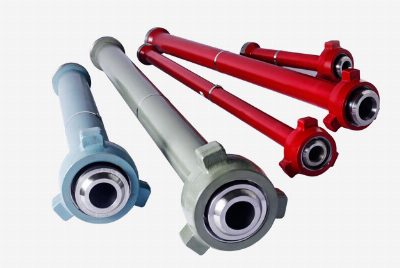

Integral Pup Joint   DescriptionIntegral Pup Joints are straight tubes with union connections on both ends, widely used for transporting high pressure flow in fracturing manifold, cementing manifold, maintenance manifold and test manifold. Jereh Integral Pup Joints are forged from premium alloy steel, handled by advanced metal melting and heat treatment technology. Based on the analysis on weight and resistance to erosion, Jereh has improved wall thickness and inner diameter to extend service life. Standard types are available with different models, pressure and temperature rating. Integral Pup Joints special for sour service are also developed in accordance to NACE MR0175. Customized service is also available.FeaturesStrictly controlled element content of raw materials and proper heat treatment technology ensure mechanical performance.Optimized design parameters provide excellent erosion resistance, extending service life.Complete size and length option satisfy various demands.SpecificationsRated Working Pressure69.0MPa~138.0Mpa(10,000psi~20,000psi)Nominal Size1 1/2″, 2″, 3″, 4″Temperature Rating-29ºC~121ºC(PU), -46ºC~121ºC (LU)-20ºF~250ºF (PU),-50ºF~250ºF(LU)ServiceStandard, Sour GasApplicationFracturing, Cementing, Acidizing, Testing LinesRelated Products    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
