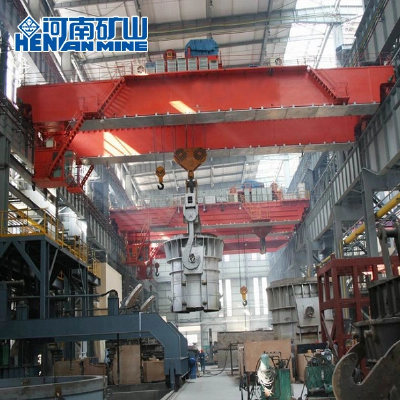

50/10ton Double Girder Cabin Control Electric Overhead Traveling Casting Crane

PRODUCTS DESCRIPTION Double Girder Casting Crane is the main lifting and transferring equipment of steel company casting workshop, it is used on casting process to transfer liquid metal, pouring and charge molten iron. This type crane adopts double girder structure; it is consist of crane frame, trolley and hook beam, crane traveling and electrical parts. The main hook fetch device is fix distance hook beam. It is used to lift and transfer steel ladle. The secondary hook is used to cooperate with main to pour the molten iron, slag, and other auxiliary lifting operations.FEATURES AT A GLANCEPRODUCT CONFIGURATIONCapacityT5,10,16/3.2,20/5,32/5,50/10,74/20Spanm10.5~31.5Lifting heightMax.hookmMax.22 Aux.hookmMax.24Operation method Cabin control with air conditionerSpeedLiftingm/minSingle or VVVF Cross travelm/minSingle or VVVF Long travelm/minSingle or VVVFLifting mechanismtypeElectric winch trolleyWorking duty A7,A8Power supplyAC220v/240v/380V/400v,50/60HZ,3P1). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control;2). Heavy duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth running.3). Siemens main electric parts are used for durable and safe operationWorking condition:Working tempreture: -10~+60° C,Work class: A7,Power Source: 3pH, 380V, 50Hz or other under customer requirement.Safety features:Weight overload protection device,Top quality long time bearing polyurethane materials buffer,Crane traveling limit switch, Voltage lower protection function,Emergency stop system,Current overload protection system and so on!Design and construction rules:All the standards which is required for the crane is the Chinese standard.Painting:Primer and finishing paintColor: According to your demand.Average thickness: About 100 microns.Advantages:Good quality with competitive priceReasonable structure, favorable performanceControl the load easily and position the load exactlySmooth starting and stoppingSuperior safety and reliabilityLow noise, commodious cabin and good viewLow dead weight low your costEasy maintenance for partsCOMPANY PROFILEThe 4,277-plus-member factory covers over 1,430,000 square meters and has a total asset of 660 million CNY. The 3,500-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
