Hose Loop

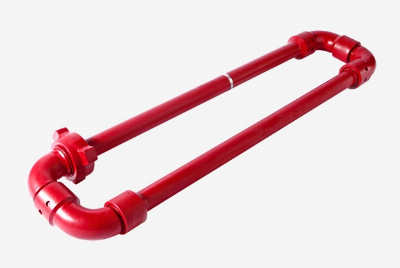

Hose Loop   Hose Loop The hose loop is assembled by  swivel joints, hammer union and pup joint, it can be swivelled in three directions flexibly. It is commonly used in oil field cementing, acid fracturing etc. Material Class: AA-EEProcessing Standard: 6AProduct Name: Circulating Hose Loop, Chiksan Hose LoopWorking Media: Crude oil and natural gas DescriptionHose Loops are mainly used for transporting fluid in high pressure discharge line, well testing line and cementing slurry line. Jereh Hose Loops include long radius type and flexible type. Long radius type combines long radius swivel joint and integral pup joint, featuring high erosion resistance, less vibration, impact resistance and large flow. Flexible type has single union connection, featuring excellent seal and rotary performance. Jereh Hose Loops are available in both standard service and H2S service, applicable to cementing, fracturing, acidizing and testing lines. Customized design is also available to meet various demand.  FeaturesSpecial repair kit is available for quick and inline maintenance.Easy to fold, store and transport.High flexibility, less vibration, impact resistance and large flowIntegral hammer union connection is easy for assembly and disassembly.  SpecificationsRated Working Pressure69.0MPa~103.5MPa (10,000psi~15,000psi)Nominal Size2″Temperature Rating-29ºC~121ºC(PU), -46ºC~121ºC (LU)-20ºF~250ºF (PU),-50ºF~250ºF(LU)ServiceStandard, Sour GasApplicationFracturing, Cementing, Acidizing, Testing Lines    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
