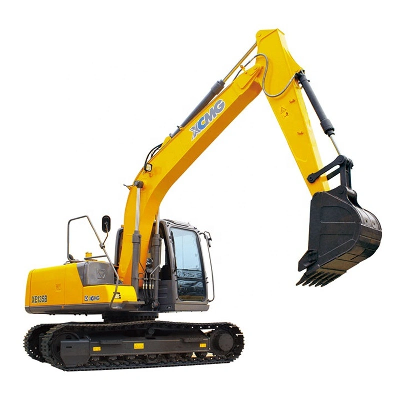

XE135 Chinese Excavator with 0.6cbm Bucket

PRODUCT DESCRIPTIONSXE135D Crawler Excavator1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stabilityand the maximum traveling speed is up to 40km/h to realize faster site transfer speed.2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of thebucket ensure strong soil holding capacity.TECHNICAL DATASDescriptionUnitParameter valueOperating weightkg13200Bucket capacitym³0.32~0.61EngineModel CUMMINSQSF3.8StyleDirect injection---√Four strokes---√Water cooling---√Turbo-charging---√Air to air intercooler---√No. of cylinders---4Output powerkW/ r/min86/2200torque/speedN.m470/1300DisplacementL3.76Main performanceTravel speed(H/L)km/h5.2/2.9Gradeability%70Rotary speedr/min11Ground pressurekPa42Bucket digging forcekN99.1Arm digging forcekN68Hydraulic systemMain pump--T5V63DPRated flow of main pumpL/min2×125.4Main safety valve pressureMPa31.4/34.3Pressure of pilot systemMPa3.9Oil CapacityFuel tank capacityL260Hydraulic tank capacityL105Engine oil capacityL11Appearance sizeOverall lengthmm7795Overall widthmm2525Overall heightmm2880Width of platformmm2490Length of crawlermm3648Overall width of chassismm2490Width of crawlermm500Wheel base of crawlermm2918Crawler gaugemm1990Clearance under counterweightmm931Min. ground clearancemm466Min. rear-end swing radiusmm2325Working scopeMax. digging heightmm8638Max. dumping heightmm6174Max. digging depthmm5546Max. digging depth at the range of level 8 feetmm5335Max. vertical wall digging depthmm4698Max. digging reachmm8304Min. swing radiusmm2445WorkerStandardLength of boommm4600Length of armmm2520Bucket capacitym³0.52OptionalLength of boommm Length of armmm2100/3010Bucket capacitym³0.32/0.4/0.61Engine:The imported Isuzu engine with original packing has more forceful power and low fuel consumption. The optimized match of system guaranties that the overall performance gives full play to the full unit. Hydraulic system:The imported hydraulic parts with high-level configuration are of rational and high quality match and excellent performance. Up-to-date fuel filter:By use of an up-to-date fuel filter,the filtration performance has been improved,the oil-taking quality guaranteed and the operation reliability of engine under severe operation conditions enhanced. High quality driving enjoy Protection against shocksBy use of an liquid sealed shockproof rubber,the oscillation and noise in cab have been further reduced and the fatigue of operating personnel relieved. The application of high-strength enclosed structure increases the strength and rigidity of whole cab. Large cab space The indoor space of new luxury cab has been enlarged for 360°view, which can build up a pleasant working environment for the operator. SeatThe seat designed on the basis of ergonomics concept considerably enhances the comfortable sensation. The suspension bag can adjust the height of seat according to the weight adjustment,making the operation more comfort. FEATURES & APPLICATIONThe widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal operations. The wet type steering clutch and brake can prolong the service life and are interlinked with each other toguarantee the rapid and flexible steering controls by joysticks. It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineeringconstructionsfor roads, farms, water conservancy projects, municipal projects, and energy projects. CONTACT US   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
