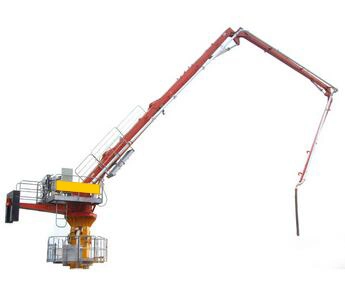

Mobile Hydraulic Spider Concrete Pump Distributor Placing Boom

PRODUTC DESCRIPTION13/15/17/23m hydraulic concrete placing boomTechnical dataItemHGY13HGY15HGY17HGY15HGY17HGY23Mobile TypeWithout WheelWith WheelHorizontal Reach13m15m17m15m17m23mRotation360°Elevation Angle0-84°0-89°0-84°0-89°0-90°0-90°Voltage380V/50HZPower445.545.522Boom Open Way3Z3R3R3R3R4MBoom Length(mm)3700/4520/47806000/5000/40006670/5720/46106000/5000/40006670/5720/46106740/5089/5089/5812Corner84°/210°/180°89°/180°/180°90°/180°/240°/200°End Rubber Hose3mInner DiameterΦ125mmWithout Counterweight2.7t3.23t5t4.5t6.0t8.8tWith Counterweight4.3t5.43t7.2t6.7t7.5t10tAdvantagesI.Arm structure features"Z"-shaped three-section folding arm, 360° rotation, pitching and expansion amplitude, all-dimensional casting in thethree-dimensional space within the length of the boom, no casting dead angle, can easily achieve the wall, pipe, column,Piles and other concrete construction castings.II. Drive, operation modeThe boom, pitch, and slewing by hydraulically driven. Hydraulic  main components such as motors, seals, tubing, contactorsand switches, buttons, etc. are selected for high quality imported or venture brand. The system is equipped with overloadprotection, flow control, phase sequence protection and other devices to ensure The overall performance is stable, safe andreliable. The whole work is controlled by buttons, and the operation is simple and the movement is stable.III.PracticalityIt does not need to be fixed when used, and can be placed flexibly according to the needs of on-site casting;Compact structure, light weight, lifting the whole machine;When not in use, it can be lifted from the construction area without affecting other operations, and it is easy to maintain;A wide range of applications, to meet the casting requirements of various construction surfaces;Safe, reliable, cost-effective.CONTACT US  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
