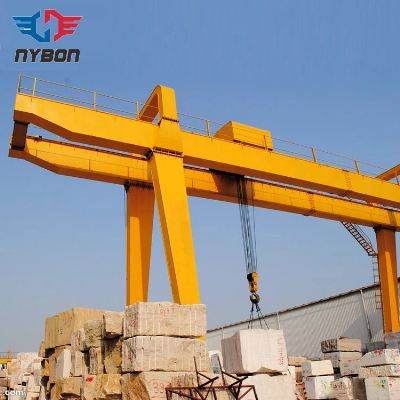

High Quality Electric Trolley System Double Girder Gantry Crane

Product Description High Quality Electric Trolley System Double Girder Gantry CraneGantry cranes are mainly used for outdoor cargo yard, stock yard cargo and bulk cargo loading and unloading operations. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port freight yards.It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.It could be special design and customize by clients' requirement. Main Technical ParameterDouble Beam Gantry CraneRated load/ton50  75 100 150 200Span/m10-40     Lifting height/m30     Working classA5/2M     Lifting speed/m/min 5.96.0  4.4 3.22.4 Trolley running speed/m/min 38.4 38.4 33.8 30 25Crane running speed/m/min 30 3030 30  30Dead weight/t112~185 148~220172~265  215~300 245~380 Number of wheel  8 16 16 24 24Max. wheel pressure/KN 288~375 210~255 255~310 230~285 295~355Steel track recommended QU70 QU100 QU100 QU100 QU100 Power supply3AC  220~480V  50/60Hz    Product DetailsProduction WorkshopCompany ProfilePackaging & ShippingMain ProductsFAQ1. Q: What's your MOQ?A: 1 Set; 2. Q: What's your package?A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes; 3. Q: What's your delivery period?A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period; 4. Q: What's your warranty period?A: 12 months from winches accepted; 5. Q: Do you have engineer oversea installation service?A: Yes; We have; 6. Q: What kinds of products do you have?A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc. 7. Q: Do you provide lift tools?A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc. 8. Q: Could your winches drag inclined?A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
