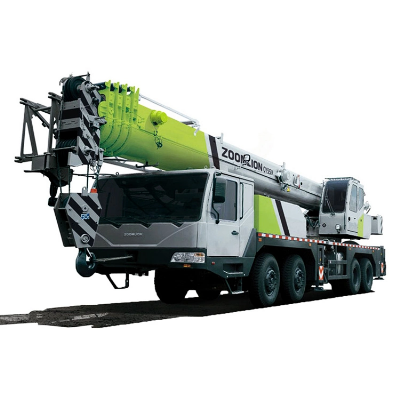

Zoomlion 110 Ton Truck Crane (QY110)

Zoomlion 110 Tons Truck Crane (QY110)A truck crane featuring full circle swinging, telescopic luffing jib and electro-hydraulic proportional control; All-frame five-axle dedicated truck chassis, featuring broad vision, luxurious and comfortable decorations, three-axle drive and three-axle steering; It adopts the latest load feedback electro-hydraulic proportional directional valve and multigang variable pump plus an open-and-close variable system, so that all actuators could give full play to their working ability; Its double rocker manipulation can achieve the combined movement of the main and auxiliary lifting, derricking, swing and telescopicing mechanisms, which has greatly improved the work efficiency of the crane; Easy and flexible operation, stable and reliable work, as well as stepless speed regulation; Such safety devices as overflow valve, balance valve, hydraulic lock and brake valve are equipped to prevent oilway overload and avoid accidents due to pipe fracture; Such safety devices as torque limiter and complete lighting system are equipped to ensure safe and reliable operation, and facilitate operation at night; TypeSer. No.ItemUnitValueWorking performance1Max. rated lifting weight × working radiuskg.m110000×3.02Max. lifting torque of basic boomkN.m44003Max. lifting torque of longest main boomkN.m18804Max. lifting height of longest main boomm58.55Max. lifting height of jibm77/(85)Dimensions6Outline dimensions (L×W×H)mm14690×3000×38907Distance between outriggers (longitudinal × transversal)mm7670×78008Main boom length (completely retracted - completely extended)m12.8~57.59Jib lengthm11
8.6(26.6)10Main boom angle of elevation°-1.5~8211Swing range 360°continuouslyWorking speed12Max.speed of single rope on the drum of main winchm/min11513Boom extension times60014Boom derricking up times8015Swing speedr/min0~1.5Mass16Complete vehicle kerb masskg5470517Front axle loadkg1990018Rear axle loadkg35000Traveling19Max. traveling speedkm/h7820Max. gradeability%4021Min. turn radiusm11.522Min. ground clearancemm280  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
