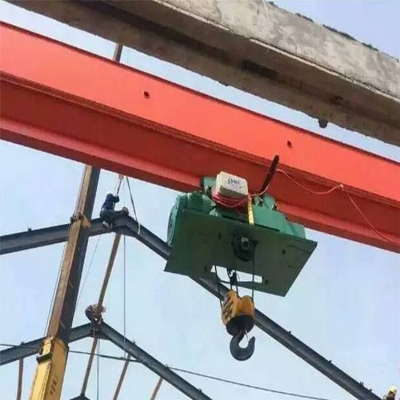

High Quality Single Beam Traveling Metallurgy Crane with Electric Hoist

High Quality Single Beam Traveling Metallurgy Crane With Electric HoistProduct Description LDY type metallurgical electric single-beam crane is a space transportation tool used in conjunction with electric hoist. Lifting and transporting the displacement of heavy objects is an important tool and equipment for improving labor productivity in metallurgy and foundry sites in modern industrial enterprises.The structure of the crane is mainly composed of three parts: bridge frame, metallurgical electric hoist and electrical system. The bridge is used to support and longitudinally move the load, and is composed of a metal structure and a running mechanism. The metal structure includes the main beam, the end beam and the connection between the main beam and the end beam. The running mechanism is composed of four parts: driving device, transmission device, braking device and wheel group. Metallurgical electric hoist bears lifting and lateral moving loads. The electrical system consists of the main circuit and the control circuit. Environment Condition 1. The power of crane is three-phase AC;rated frequency is 50HZ;rated voltage is 380V;2. The temperature of working environment is-10~+60ºC;3. The relative humidity is no more than 50% when the temperature is+40ºC;4. If the requirements are more than above-mentioned,it shall carry out the requirements in the purchase contract as the user asks. Main Features1. Heavy duty double beam overhead steel factory crane .2. Special used in steel plant. 3. Smooth starting and stopping. 4. Safe and reliable traveling, long life. 5. Heat-resistant electrical equipment and wiring.6. Crane drive: IP54 or IP44, level F insulation7. High quality with competitive price. Product ParametersLifting weight(T)123510Span(m)3~16Max Lifting height(m)3,6,9,12,18Working classA6Main Hoisting Speed(m/min)8,8/0.8;7,7/0.7Trolley Cross Traveling Speed(m/min)20,2~20(frequency inverter)Crane Long Traveling Speed(m/min)30,3~30(frequency inverter)Motor TypeSquirrel cage motorMotor (Kw)Main Hoisting1.534.57.513 Trolley Cross Traveling1*0.4,1*0.8,2*0.8 Crane Long Traveling2*0.4,2*0.8,2*1.5Control modePendent line control,Remote controlRecommended Rail modelI20a~45c,I40b~63cPower source3Ph A.C 50Hz 380V FAQ Q1: What's the information should I provide when inquiry?A1: More details or drawings, better.A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.   Q2: What do Henan Mine Crane do?A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.   Q3: What makes you different from other manufactures?A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.  Q4: What areas do you service? How can we install the crane?A4: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.   Q5: Can this type work in hazardous environment?A5: Sure! We can customize for you, acid proof or explosion proof, no problem for that.  Q6: Can you provide the various lifting tools?A6: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement! /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
