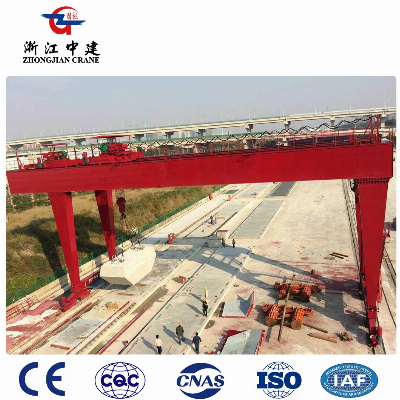

130 Ton Rubber-Tyred Gantry Crane

  Reliable Supplier CE Approved European Standard Gantry CraneProduct Description     The rubber-Tired gantry crane is a kind of special equipment, mainly used for lifting, transferring and loading the prefabricated concrete box girder in the concrete prefabricated beam field. It can also be used for the hoisting and moving of the box girder reinforcement skeleton and the inner mold of the prefabricated plant. The rubber-Tired crane can realize a variety of modes such as straight travel, diagonal travel, horizontal travel, in-situ rotation, Ackerman steering, etc.It has mobility, flexibility, adaptability, high work efficiency, small size occupation area and do not need to lay the rail which are particularly suitable for beam factories with horizontal layout. The rubber Tired gantry crane can work independently or collaborative work by two units.    The crane mainly consists of main beam, support leg, hoisting mechanism, tire walking and braking system, steering mechanism, power system, electrical system, hydraulic system, hydraulic transmission system, cab, control system, safety device, etc.----------------------------------------------------------Design and Manufacturing Feature-----------------------------------------------------------------Design Code:ZHONGJIAN's Rubber Tired Gantry Crane follows the design code of FEM, CMAA, ISO EN, BS, GB standard.Open Winch:Heavy Duty Design, compact structure, smooth operation, accurate positioning, high Safety reliability, and Maintenance-friendly.Girder:Compact Design and low weight, use Q355B steel material(ISO EN S355, DIN ST52, ASTM A 572 Grade 50), welding specification follows ISO 15614, AWS D14.1, deflection can from 1/700 ~ 1/1000, MT or PT is requested for Fillet welding and UT is requested for joint welding.Bogie :Wheel pair locked for normal driving, wheel pair unlocked to rotate in unforced,wheel pair locked for cross-driving. Gear Motor:Worldwide top brand gear motor to make sure the quality, IP55, F insulation class, overheat protection, manual release bar, and equipped with electro-magnetic brake.Control Panel:Follow IEC standard, IP55 powder coating high quality enclosure, socket plug-in for easy connection, DIN standard terminal, international brand for the inverter, MCB, Contact and electrical devices on the panelFestoon System:Double line Galvanized C track system with flexible flat cable, one line for hoist power and signal transmission, one line for the pendent control trolley movement. No-welding claw is design for the brackets of the festoon system fixing.Safety Protection Functions:ZHONGJIAN Rubber Tired Gantry Crane include a lot of protection functions, like Overheat protection for the lifting, load cell type overload limit switch, up&down position limit switch, cross limit switch for the cross travel and long travel. Phase sequence relay, and other optional functions, like crane monitoring system, LED load displayer.Controls:ZHONGJIAN Rubber Tired Gantry Crane can offer both options of remote control and pendent control.Anti-corrosive Treatment:Shoot Blasting follow ISO8501-1 SA2.5 class, roughness follow ISO 8503 G class, and clearness follow 8502-3 Level II. Use top brand's Rich zinc epoxy painting for the prime, middle layer coating. Use polyurethane topcoat for the finished layer coating. All ZHONGJIAN  painters are trained or inspected by NACE or FROSIO level II Inspector.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
