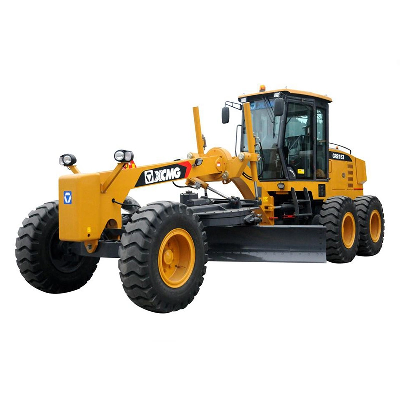

215hp GR215 motor grader for sale Introduction1.The GR215 AVII motor grader adopts Dongkang 6CTA8.3-C215 turbocharged diesel engine with large output torque and power reserve coefficient and low fuel consumption.2.The gearbox and torque converter are 6WG200 electronically controlled power shift and fixed shaft transmissions produced by Liuzhou ZF. The torque converter has a large torque coefficient, high efficiency, and a wide range of high efficiency. It has good joint performance with engine matching.3.The drive axle is the Meritor post-production axle.4.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential.5.The front steering of the machine adopts a load-sensing full hydraulic steering device.Specifications of motor graderBasic specificationEngine model6CTAA8.3 6CTA8.3Rated power/speed 153kW/2200rpm 160kW/2200rpmDimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kgPerformance specificationTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)82KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mm /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
