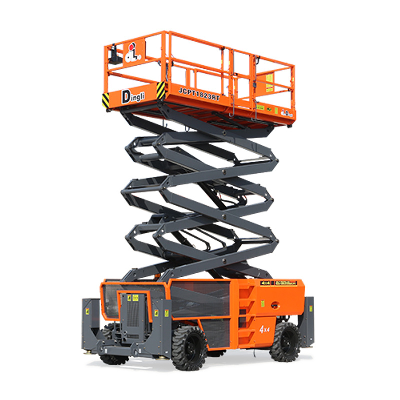

Dingli 22m Hydraulic Lift Table Jcpt2223DC Scissor Car Lift

 DINGLI 18m JCPT1823RT Engine Scissor Lifts   Main spec. Overall Width:2.46m S.W.L:750kg Max. Working Height:22.00m   Important features Large working platform, higher operating efficiency Four wheel drive, climbing ability of the maximum up to 30%,More mobile Self-leveling hydraulic outriggers Vertical lift maintenanceModelJCPT2223DCMax. Working Height22.00mMax. Platform Height20.00mOverall Length4.95mOverall Width2.46mOverall Height(Rails up)3.86mOverall Height(Rails down)3.00mPlatform Size(Length×Width)4.59×2.25mPlatform Extension Size2.70mGround Clearance0.40mWheel Base3.30mModelJCPT2223DCS.W.L750kgS.W.L On Extension750kgMaximum Occupants4Turning Radius(Inside/Outside)1.25m/3.40mTravel Speed(Stowed)5.00km/hTravel Speed(Raised)0.40km/hUp/Down Speed90/100secGradeability30%Maximum Working Slope2°/3°Tyre36×14-20ModelJCPT2223DCBattery48V/630AhCharger48V/60ADriving Motor4×AC 32V/3.3kWLifting Motor2×AC 48V/8.0kWHydraulic Tank150L       /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
