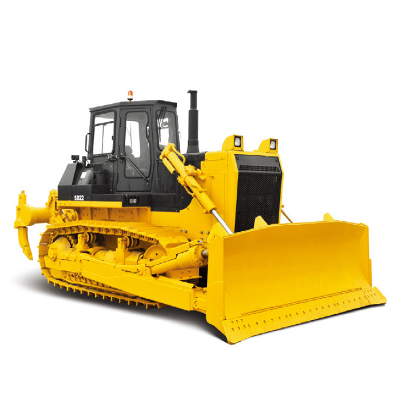

High Quality 22t Bulldozer SD22

1.Product Introduction SD22 series bulldozer adopts Shantui's patented technologies, including central lubrication, central pressure measurement, and automatic track tensioning technologies, and won the sole national golden quality award in China's bulldozer industry. With multiple working devices and cabs, this product can meet the operation demands for diversified working conditions and is an ideal high-efficiency machine for earth-moving operations and bulk material handling.                                                                                                                                                                      2.Product Parameters  PRODUCT  SD22PERFORMANCE PARAMETERSOperatiing   Weight (kg)23450Rated horsepower (kw/hp)175/1800Minimum turning radius (mm)3300Ground pressure (kpa)66ENGINEModelChongqing   cummi ns NT855-C280S10EmissionChina   ITypeIn-line,direct   injection,water cooled,4-cycles,turbochargedNo.of cylinders×Bore×stroke (mm×mm)6×140×152Piston displacement (L)14Horsepower/rpm (kw/rpm)175/1800Maximum torque (N.m/r/min)1030/1250DIMENSIONSLength(mm)5495Width(mm)3725Height(mm)3402TRAVELING PERFORMANCEForward/Reverse(km/h)F1:0-3.6   F2:0-6.5 F3:0-11.2 R1:0-4.3  R2:0-7.7   R3:0-13.2Gradeability(deg)30Clearance(mm)405TRANSMISSIONTorque   convertor 3-element, single stage, 1-phaseGear boxPlanetary   gear and powershift transmission, hydraulically actuated, forced lubricationMain driveSpiral   bevel gear, single-stage speed reduction, splash lubricationSteering clutchWet   multiple disc,coned disc spring loaded, hydraulically actuated, hand   operated,interconnected with steering brakeBrake Wet, contracting band,foot operated with   hydraulic boosterFinal driver spur gear,double reduction ,splash   lubricationUNDERCARRIAGESuspensionSwing   type of sprayed beam,suspended structure of equalizer barTrack gauge (mm)2000Shoe width (mm)560Track length on ground (mm)2730Number of shoes (each side)38Pitch (mm)216Carrier rollers (each side)2Track rollers (each side)6WORKING HYDRAULIC SYSTEMPressure   (MPa)14Working pumpGear   pumpValveMulti-way   valveBore of blade lift cylinder (mm)φ120 Bore of blade tilt cylinder (mm)φ200 TANK CAPACITYFuel   tank capacity (L)450Working hydraulic tank capacity (L)110WORKING EQUIPMENTBlade   width (mm)3725Blade height (mm)1315Blade capacity (m³)6.4Max.Drop below ground of blade1210Lift height of blade540Type of ripperSingle   shank/3 shanksMaximum digging depth of ripper (mm)Single   695 Three 666Maximum lifting height of ripper (mm)Single   515 Three 555                                                                                                                                                                      3.Product Pictures                                                                                                                                                                      4.Recommend to youSD16 BulldozerThe bulldozers with SD16 hydraulic drive series enjoy the high technology content, advanced and reasonable design, high power, efficiency and convenient maintenance, applicable for the harsh operating environment. It is suitable for the pushing, digging, filling of the earth, stones and other bulk materials at the roads, railways, minerals, airports and so on, indispensable for defense engineering, mineral construction, urban and rural roads, water conservancy construction and others. SD16, SD16C, SD16E, SD16F, SD16L & SD16R bulldozers are of the hydraulic drive type with power up to 120kw (160hp) SD32 BulldozerSD32 is a large horsepower bulldozer (320hp) which is manufactured with advanced technology introduced from Koma/tsu,Japan. Cu/mmins engine Model NTA855-C360S10 is selected for its ample power, with high torque and low fuel consumption. The bulldozer can keep normal working conditions without any adjustment in highland with altitude up to 3600m due to the equipment of exhaust turbocharger. The adoption of hydraulic driving system and hydraulic control technology provides advanced structure ,reliable performance and easy control.                                                                                                                                                                                                                                                              5.Contact meName: Symphony Fan     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
