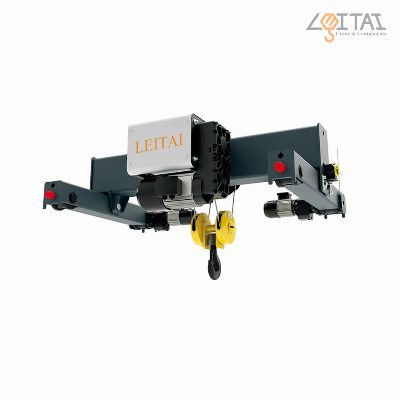

20t Fem Standard Double Girder Electric Low Headroom Wire Rope Hoist

20t Fem Standard Double Girder Electric Low Headroom Wire Rope HoistProduct DescriptionLHA-D Double Girder hoists mounted on a double girder trolley are available with a single scrolled hoist drum in all capacities up to 20 tonnes and in all capacities up to 63 tonnes with a double scrolled hoist drum.      A double scrolled hoist drum costs more than a single scroll drum but provides true vertical lift and equal trolley wheel loads. The equal wheel loads reduce the cost and size of crane girders such that the overall crane solution with a double scrolled hoist is the most economic at larger capacities and the true vertical lift is a big advantage in some applications. Hoists in this range are on 2, 4, 6, 8, 12 and 16 falls of rope and multiple brake/motor/gearbox/drum diameter combinations to provide a very large number of speed, duty and height of lift options.      The following unique features enhance safety, performance and reliability or reduce lifetime costs by enabling inspection and service tasks to be executed in less time.Compact structure, light weight, small wheel pressure, maximum use of space, comprehensive cost performanceModular design, low maintenance costs, complete spare parts serviceAdopt low clearance design to save building height for customer workshop design, increase workshop hoisting area and save construction costSelected quality parts, low noise, safe and reliable, durablePrecise positioning, efficient operation, high sustainable work efficiencySafe and reliable, operational monitoring, easy to repairDesign and Manufacturing FeaturesGear Motor:      Worldwide top brand gear motor like ABM, SEW to make sure the quality, IP55, F insulation class, overheat protection, manual release bar, and equipped with electro-magnetic brake.Rope Drum:      Made of seamless pipe, CNC machined with precision of concentricity. Advanced processing methods ensure concentricity of the reels. The depth of the rope groove complied with FEM standard. High-strength lock plate are fastened on the drum to hold the wire rope ensure the safety of lifting.Wire Rope:      Adopt high-performance and high-strength wire rope with zinc surfacing-plating which is effectively prevent corrosion. High breaking force and good flexibility.Rope Guider:      Use Special high-strength Nylon which light weight, prevent wire rope from shipping and loosing to off-groove, and safety first.Hook Block:      DIN standard T grade hook with safety latch, and the hook is made byforged high-strength alloy steel. 360 degree rotation and ergonomic design.Control Panel:      Follow IEC standard, IP55 powder coating high quality enclosure, socket plug-in for easy connection, DIN standard terminal, international brand for the inverter, MCB, Contact and electrical devices on the panelSafety Protection Functions:    LHA-D Double Girder Hoist crane include a lot of protection functions, like overheat protection for the lifting, load cell type overload limit switch, up&down position limit switch. Phase sequence relay, and other optional functions, like crane monitoring system, LED load displayer.Product ParametersCapacity(t)Lifting Height(m)Lifting Speed(m/min)RopeReevingLifitng Power(kW)Travel Speed(m/min)Travel Power(kW)Work DutyFEM/ISOH(mm)C(mm) Rail GaugeS(mm)3.26/9/12/15/185/0.84/13.3/0.520/50.25×22mM55004201400~200056/9/12/15/185/0.84/16.1/120/50.37×22mM55204251400~20006.36/9/12/15/185/0.84/16.1/120/50.37×21AmM45204251400~200086/9/12/15/185/0.84/19.5/1.520/50.37×23mM65505801400~2000106/9/12/15/185/0.84/19.5/1.520/50.37×22mM55505801400~200012.56/9/12/15/185/0.84/112.5/220/50.55×21AmM45505801400~2000166/9/12/15/184/0.64/115/2.520/50.95×22mM57209201400~240020.06/9/12/15/184/0.64/115/2.520/50.95×21AmM47209201400~2400206/9/12/15/184/0.68/215/2.520/50.95×22mM57209201700~270025.06/9/12/15/182.8/0.512/218/320/51.1×22mM58508001700~3500326/9/12/15/182.8/0.512/218/320/51.5×21AmM48508001700~350032.06/9/12/15/183.2/0.716/222/520/51.5×23mM610258001700~3600406/9/12/15/182.8/0.616/222/520/51.5×22mM510258001700~360050.06/9/12/15/182/0.516/222/520/52.2×21AmM410907501700~3600506/9/12/15/180.7-3.312/23820/52.2×22mM510908002200~360063.06/9/12/15/180.7-3.312/23820/53×21AmM410908002200~3600  Company Profile /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
